Product Details:
|
| Product Name: | High Pressure Atomizer Ultrasonic Nozzle Spray For Chemical Mixing 150 L/H 62μm | Frequency: | 15Khz |
|---|---|---|---|
| Atomization Volume: | 150L/H | Average Particle Diameter Of Fog: | 62um |
| Power: | 500W | Atomization Head Structure: | Horn |
| Origin: | China | Material: | Plastic Or Stainless Steel |
| High Light: | Stable Output Ultrasonic Atomizer,500W Ultrasonic Nebulizer,15kHz Ultrasonic Nebulizer |
||
Ultrasonic Atomizer With Excellent Performance Stable Output 15kHz 500W
Specifications:
|
Model |
HS-N60 |
HS-N50A |
HS-N50B |
HS-N50C |
HS-N40 |
HS-N30 |
HS-N20 |
HS-N15 |
|
Frequency |
60KHz |
50KHz |
50KHz |
50KHz |
40KHz |
30KHz |
20 KHz |
15 KHz |
|
Atomization Volume |
0.5L/H |
2 L/H |
2 L/H |
2 L/H |
10 L/H |
70 L/H |
100 L/H |
150 L/H |
|
Average Particle Diameter of Fog |
20um |
28um |
28um |
28um |
32um |
39um |
51um |
62um |
|
Power Consumption |
0.01 Degrees/Kg |
0.001 Degrees/Kg |
||||||
|
Atomization Head Structure |
Cylindrical |
Horn |
||||||
|
Power |
30W |
30 W |
30 W |
30 W |
60 W |
100 W |
300 W |
500 W |
|
The Application of Atomizing Media |
Ordinary water, a variety of liquid substances, chemical liquid, a variety of oil mucus, metal melt and so on |
|||||||
Description:
When the ultrasonic generator outputs high-frequency electric energy, the crystal transducer at the bottom of the water tank generates ultrasonic sound energy. The sound energy vibrates the sound-transmitting membrane at the bottom of the atomizing tank, acts on the liquid in the atomizing tank, and destroys the surface tension of the liquid medicine. and inertia, making the liquid into fine mist droplets.
Applications:
Ultrasonic atomizer series products, from single nozzle to multi nozzle, from unstable flange mounting structure to high-performance input type, from water atomizer to atomizer resistant to strong oxidants such as chlorine dioxide, from zinc From alloy casing to brass and stainless steel casing, choose the product model of the atomizer, and adjust the parameters and process of the atomizer reasonably
Competitive Advantage:
1. Reduce material consumption and overspray up to 80%
2. Highly controllable spray pattern with controlled flow for reliable, consistent results
3. Corrosion-resistant structure, high-quality material
4. Low maintenance anti-clogging design
5. Reduce downtime in critical manufacturing processes
6. High reliability, no moving parts

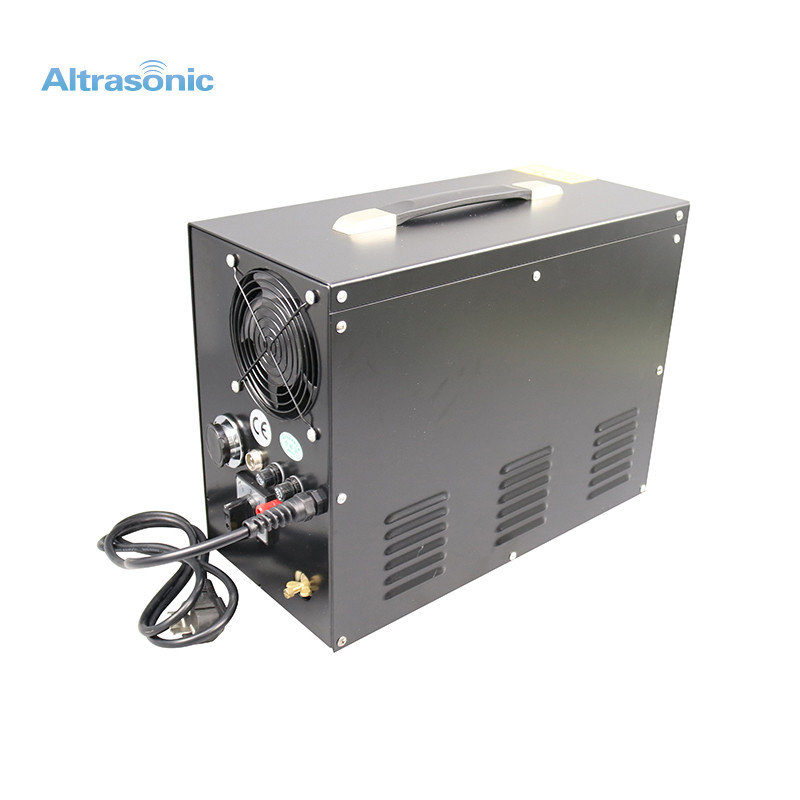

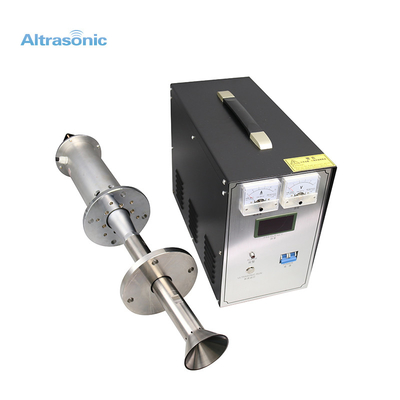

Picture:
