Product Details:
|
| Frequency: | 50khz | Power: | 30w |
|---|---|---|---|
| Diameter Of The Particle: | 28um | Atomizing Volume: | 2L/H |
| Nozzle Type: | Long Nozzle | Power Consumption: | 0.01 Degrees/Kg |
| Material: | Titanium | Origin: | China |
| High Light: | Energy Saving Ultrasonic Atomizing Nozzle,30w Ultrasonic Atomizing Nozzle,Low Power Ultrasonic Atomizing Nozzle |
||

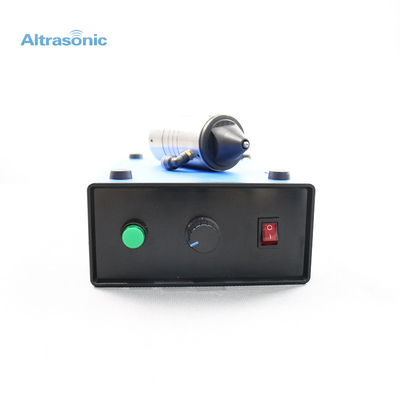

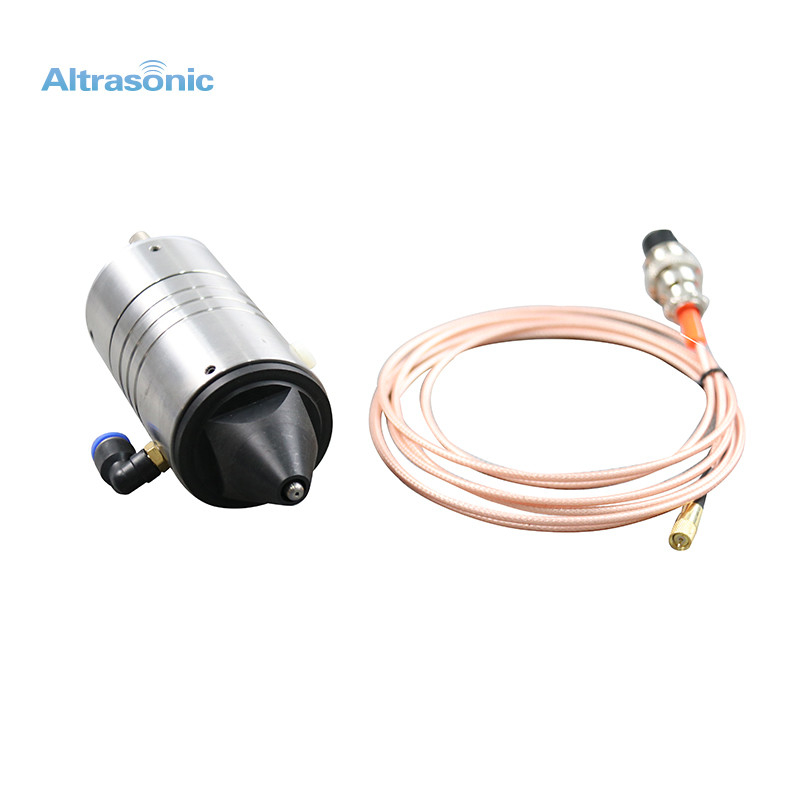

Energy Saving Ultrasonic Atomizing Nozzle 30w Low Power
Specification:
| Frequency | 50KHz |
| Power | 30W |
| Atomization speed | Max:5L/H |
| Power Consumption | 0.01 Degrees/Kg |
| Atomization Volume | 28um |
| Spray Nozzle Shape | Long nozzle |
| Atomization Head Structure |
Cylindrical / Conical |
Introduction:
Unlike traditional nozzles that rely on high-speed pressure to shear fluids into small droplets, ultrasonic atomizing nozzles use vibrational energy to create a low-velocity mist. Ultrasonic nozzle is a type of spray nozzle, which uses high-frequency vibration generated by piezoelectric transducers to act on the nozzle head, thereby generating capillary waves in the liquid film. Once the amplitude of the capillary waves reaches a critical height (due to the power level provided by the generator), they become too high to support themselves, and tiny droplets fall off the tip of each wave, causing atomization.
Application:
Atomization humidification, chemical mixing, production, spray drying granulation, paint spraying and so on. The advantage is that it can atomize various kinds of liquid and it has Large atomizing volume, energy-saving, environmental protection.
Detailed Images:
Transport and packaging:
