Product Details:
|
| Product Name: | Replacement Transducer For Dukane 110-3122 | Frequency: | 28khz |
|---|---|---|---|
| Ceramic Diameter: | 30 Mm | Capacitance: | 10nF |
| Power: | 500W | Application: | Welding Machine |
| Amplitude: | 6 Um | Ceramic Disc: | 2pcs |
| Material Of Booster: | Titanium, Aluminum, Steel Materials Optional | Protective Housing: | Aluminum And Stainless Steel Optional |
| Highlight: | ultrasonic transducer for welding,transducer ultrasonic welding |
||

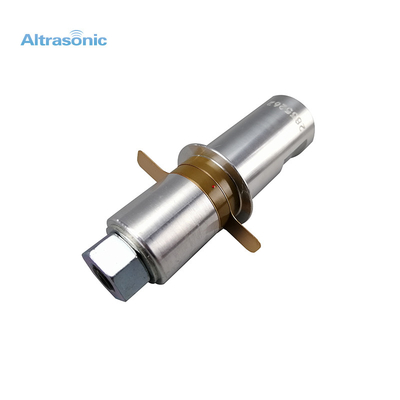

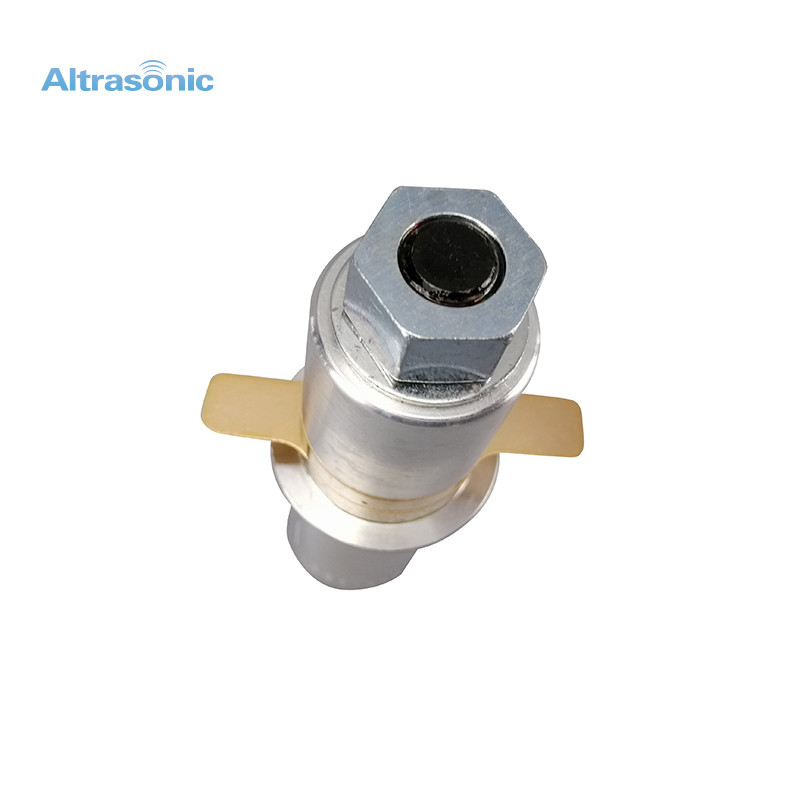

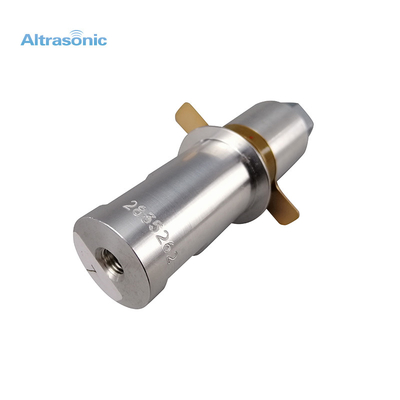

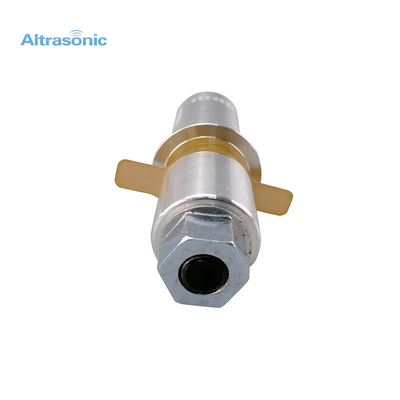

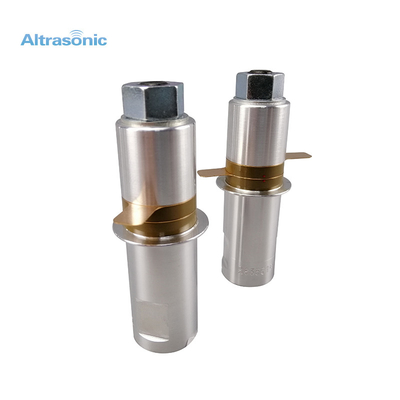

HS-3828-2Z 28 Khz Ultrasonic Welding Transducer Ultrasound Converter Replacement
Specifications:
| Model | HS-3828-2Z |
| Frequency | 28 Khz |
| Output power | 500 W |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 38 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 3.8~4.3 nF |
| Amplitude | 6 um |
| Application | Welding |
Description:
Ultrasonic transducers convert AC into ultrasound, as well as the reverse. Ultrasonics, typically refers to piezoelectric transducers or capacitive transducers. Piezoelectric crystals change the size and shape when a voltage is applied; AC voltage makes them oscillate at the same frequency and produce ultrasonic sound. Capacitive transducers use electrostatic fields between a conductive diaphragm and a backing plate.
Warranty:
We offer the same warranty as the OEM, namely, one years one-time replacement.
Simply ship the broken unit back to arrive within one years of original shipment, and it will be replaced (one time).
