Product Details:
|
| Model: | HS-5020-4Z | Frequency: | 20kHz |
|---|---|---|---|
| Power: | 2000w | Application: | Welding,mask Machine |
| Color Of Ceramic: | Yellow | Ceramic Disc Diameter: | 50mm |
| Joint Bolt: | M18*1.5 | Amplitude: | 8um |
| Qty Of Ceramic: | 4 | Output Power: | 1500watt |
| High Light: | 2000w Ultrasonic Converter,Ultrasonic Welding 2000w Converter,4 Pieces Ceramic 2000w Converter |
||

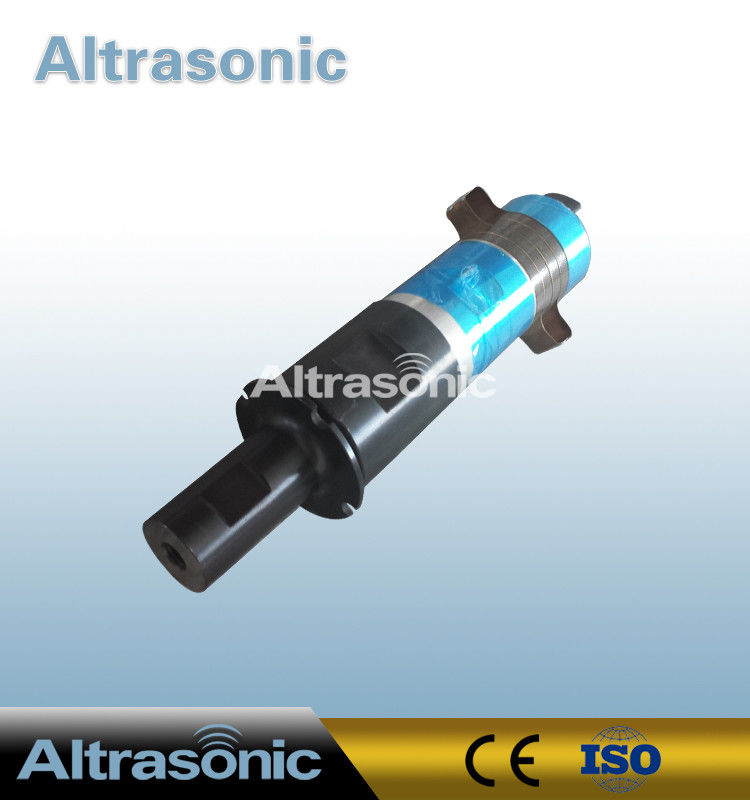

Ultrasonic Welding 2000w Converter 20kHz With 4 Pieces Ceramic
Specification:
| Model | HS-5020-4Z |
| Frequency | 20khz |
| Output Power | 1500watt |
| Joint Bolt | M18*1.5 |
| Ceramic Disc Diameter | 50mm |
| Quantity of Ceramic Discs | 4pcs |
| Capacitance | 11-17nf |
| Amplitude | 8um |
| Application | Welding,mask machine |
Description:
Ultrasonic transducer is a kind of energy conversion device, translating high-frequency electrical energy into high-frequency mechanical vibrations whcih will be used in many kinds of field such as agriculture, transportation, life, medical treatment and military. This conversion from electrical energy to mechanical energy can be achieved through piezoelectric ceramics or magnetostrictive materials. And the Ultrasonic transducer is energy-saving.
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
5. The piezoelectric ceramic chip can give a strong and stable output.
Detailed Images:
