Product Details:
|
| Frequency: | 35khz | Max. Output Power: | 800watt |
|---|---|---|---|
| Application: | Plastic Welding | Frequency Tuning Method: | Frequency Tuning Method |
| Components: | Ultrasonic Transducer And Generator | Power Adjusting Method: | 30%-99% |
| Net Weight: | 13kg | CE: | CE Approved |
| Horn: | ≤12MM | Warranty: | 1 Year |
| Highlight: | 35khz Hand Held Spot Welder,800w Handheld Spot Welding Machine,800w Hand Held Spot Welder |
||

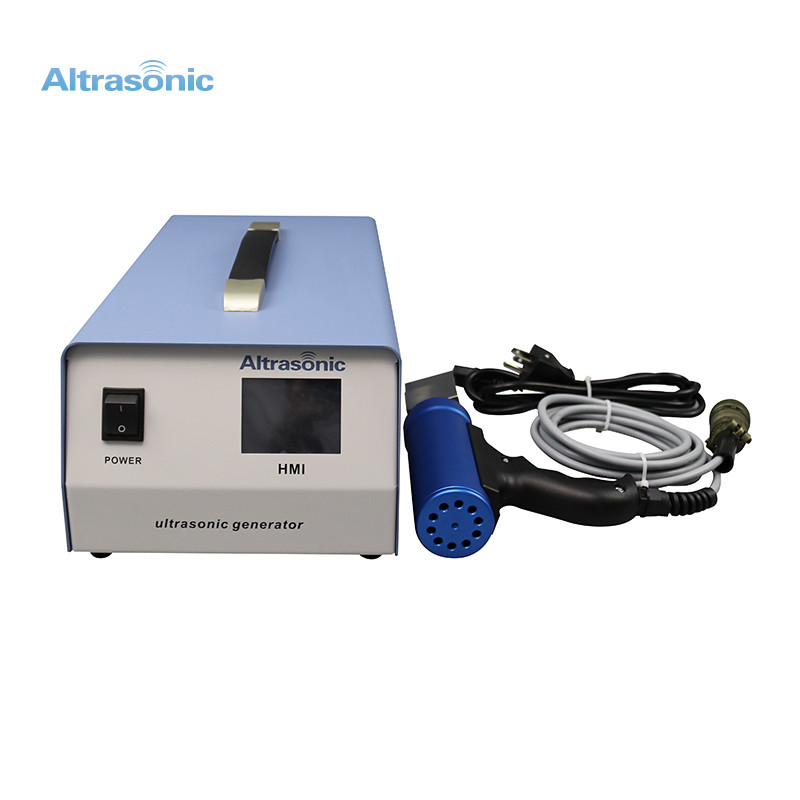

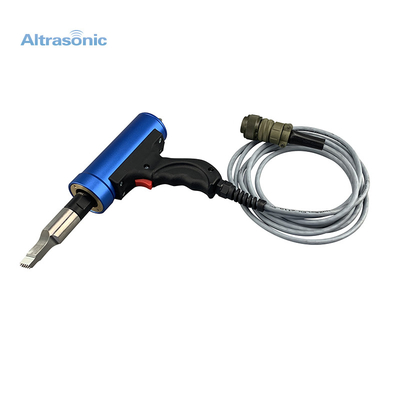

35khz 800w Ultrasonic Handheld Spot Welding Machine For Plastic
Descriptions:
Ultrasonic spot welding equipment is especially suitable for situations that require fast processing time, good processing reliability, or no other fillers or solvents.
Specifications:
Frequency : 35khz
Power : 1000watt
Welding head : ≤12 mm
Dia of shell : 51 mm
The handle size : 100mm*45mm*32mm
Weight of welder : 1kg
Generator : Digital
Application : Riveting , Welding , Embossing
Suitable materials : ABS , HIPS , PMMA , MPPO....
working environment:
Indoor use, humidity: ≤85%RH; ambient temperature: 0℃~40℃
There must be sufficient space around the machine, not less than 150mm, for heat dissipation and plugging and unplugging of aviation plugs.
