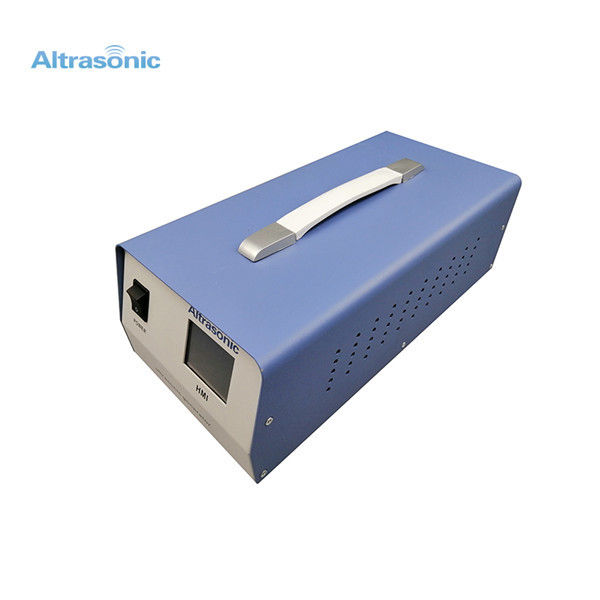

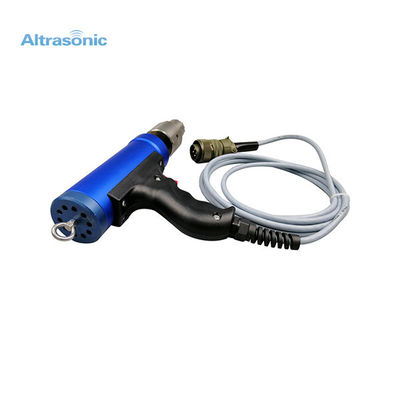

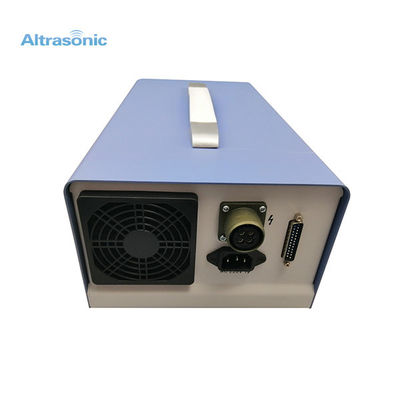

Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding

Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding
Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding

Large Image :  Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSW40
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7 working days
Payment Terms: T/T
Supply Ability: 5000 Set per month

Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding

Description
Frequency: 35khz Max. Output Power: 800watt
Application: Plastic Welding Frequency Tuning Method: Frequency Tuning Method
Components: Ultrasonic Transducer And Generator Power Adjusting Method: 30%-99%
Net Weight: 13kg CE: CE Approved
Horn: ≤12MM Warranty: 1 Year
High Light:

Plastic 35kHz Ultrasonic Spot Welder

,

800W Handheld Spot Welder

,

Handheld 35kHz Ultrasonic Spot Welder

High Quality Handheld Type 35kHz 800W Plastic Ultrasonic Spot Welder for plastic welding



Description:



35khz ultrasonic spot welding machine used for plastic welding machine can perform plastic welding, embedding, forming, riveting, welding, cutting, stitching and other operations. It can be used for multiple applications on one machine only by replacing the welding head.



Function:



1. Welding:

The welding head vibrating at ultra-high frequency of ultrasonic wave under the moderate pressure makes the joint surface of the two plastics generate friction heat and melt fusion at the same time. The welding strength can be comparable with the body, using suitable workpiece and reasonable interface design. It can achieve watertightness and airtightness, and eliminates the inconvenience caused by the use of auxiliary materials to achieve efficient and clean welding.


2. Riveting welding:

Ultrasonic ultra-high frequency vibration welding head, pressing the tip of the plastic product, so that it instantly melts into a rivet shape, so that the materials of different materials are mechanically riveted together.


3. Buried:

By means of the trajectory of the welding head and appropriate pressure, the metal parts (such as nuts, screws, etc.) are squeezed into the plastic hole and fixed at a certain depth. After completion, the tension and torque can be comparable. The strength of the traditional mold forming can eliminate the disadvantages of the injection mold being damaged and the injection slow.


4. Molding:

This method is similar to the riveting method. The concave welding head is pressed against the outer ring of the plastic product, and the ultrasonic hair is ultrasonically shaped and covered by the ultra-high-frequency vibration of the welding hair to be coated with the metal object to fix it, and The appearance is smooth and beautiful, and this method is mostly used in the fixed forming of electronic type and horn, and the fixing of lenses of cosmetics.


5. Spot welding:

Welding two pieces of plastic points without pre-designing the welding line to achieve the purpose of welding; for larger workpieces, it is not easy to design the workpiece of the welding line for point welding, and the welding effect can be achieved, and multiple points can be spot-welded at the same time.







Characteristics:



1. One key start, simple operation and easy to start with for customers.
2. Imported CPU and drive unit to ensure reliable power supply.
3. Effectively balance the amplitude while frequency is locked based on the frequency and amplitude control using PID.
4. Power outburst mode, save energy comparing to the traditional ultrasonic hand-held welding machine.
5. Welding amplitude adjustable from 60% to 100% by 1% step.







Application:



1. Automotive

2. Packaging

3. Electronic/ElectricalHardware

4. Health Care

5. Instrument

6. Medical

7. Textile





Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding 0





Handheld 800W 35kHz Ultrasonic Spot Welder For Plastic Welding 1
