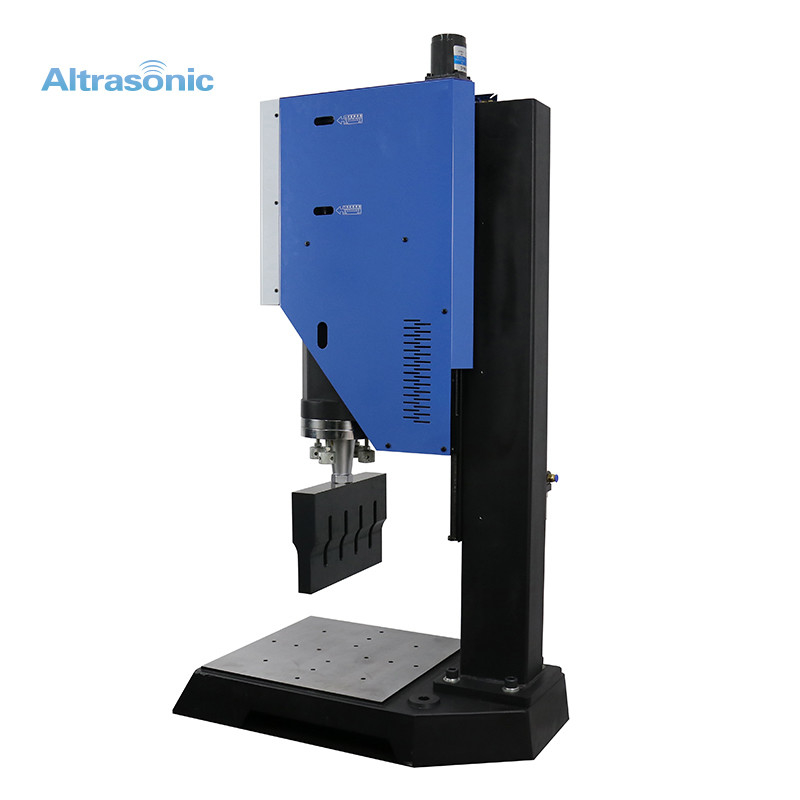

2600w Ultrasonic Welding Machine For Plastic Parts

2600w Ultrasonic Welding Machine For Plastic Parts
2600w Ultrasonic Welding Machine For Plastic Parts 2600w Ultrasonic Welding Machine For Plastic Parts

Large Image :  2600w Ultrasonic Welding Machine For Plastic Parts

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-W15B
Payment & Shipping Terms:
Minimum Order Quantity: 1pc
Price: negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 300 units per month

2600w Ultrasonic Welding Machine For Plastic Parts

Description
Product Name: Ultrasonic Plastic Welding Machine Frequency: 15k
Power: 2600w Max Current:: 10A
Origin: CHINA Model: HS-W15B
Warranty: 1 Year Certification: CE
High Light:

2600w Ultrasonic Welding Machine

,

15k Ultrasonic Welding Machine

,

Plastic Parts Ultrasonic Welding Machine

Factory Price Ultrasonic Welding Machine For Plastic Parts

ultrasonic welding machine for plastic parts

Description:



The principle of ultrasonic plastic welding is that a generator generates a 20KHZ (or 15KHZ) high-voltage, high-frequency signal, and the signal is converted into a high-frequency mechanical vibration through an energy conversion system, which is applied to the plastic workpiece, and passes through the surface of the workpiece and the internal molecular parts. The friction causes the temperature of the transfer to the interface to increase. When the temperature reaches the melting point of the workpiece itself, the interface of the workpiece melts quickly, and then fills the gap between the interfaces. When the vibration stops, the workpiece is cooled and set under a certain pressure at the same time. Finally, the welding effect is achieved.



Specifications:



Item No HS-W15B
Frequency 15Khz
Power 2600W
Voltage 200-240V,Alternating current
50-60hz, Single phase
Electric current 20A
Range of welding time 0.05-10/sec
Environment Temperature 5-50℃
Air supply requirements Clean dry compressed air, maximum pressure 7kg
Maximum pressure 2.89KN
Maximum stroke 100MM
Beats 50/Min
Triggered Dynamic range 135-990N
Weight 68Kgs
Dimension
476mm(L)*736mm(W)*1524mm(H)






Advantages:



1. Novel and fashionable appearance and structure design, fast and convenient operation and movement;

2. IC precision control circuit, automatic overload protection system;

3. Tooling four point balance adjustment, simple adjustment of welding head;

4. Japanese original NTK transducer (vibrator), with stronger power output than its peers;

5. No load and no load have resonance, and there is no need to adjust the welding head frequency;

6. Frequency modulation and frequency automatic compensation circuit;

7. Imported alloy steel / aluminum variable spoke rod, strong and stable sound wave;

8. Electric lifting body, easy and convenient operation and high strength;

9. Electric precision mechanical limit fine adjustment, high precision up to 0.2mm;

10. It has the most advanced three welding modes: time welding, depth welding and collapse welding, which is more suitable for high-precision welding occasions.



Detailed Images:

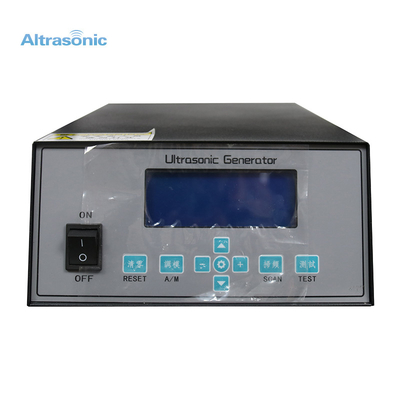

2600w Ultrasonic Welding Machine For Plastic Parts 02600w Ultrasonic Welding Machine For Plastic Parts 1
