Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| High Light: | 50hz Ultrasonic Plastic Welding Machine,10A Ultrasonic Plastic Welding Machine,50hz Ultrasonic Plastic Welder |
||
15k easy operation ultrasonic plastic welding machine
Description:
The principle of ultrasonic plastic welding is that a generator generates a 20KHZ (or 15KHZ) high-voltage, high-frequency signal, and the signal is converted into a high-frequency mechanical vibration through an energy conversion system, which is applied to the plastic workpiece, and passes through the surface of the workpiece and the internal molecular parts. The friction causes the temperature of the transfer to the interface to increase. When the temperature reaches the melting point of the workpiece itself, the interface of the workpiece melts quickly, and then fills the gap between the interfaces. When the vibration stops, the workpiece is cooled and set under a certain pressure at the same time. Finally, the welding effect is achieved.
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|

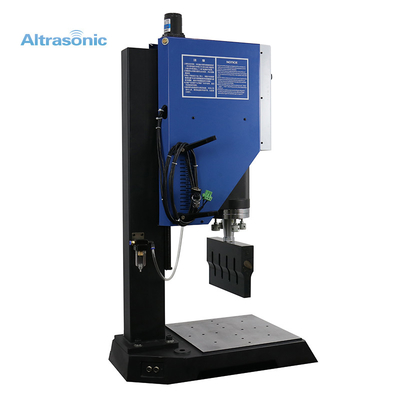

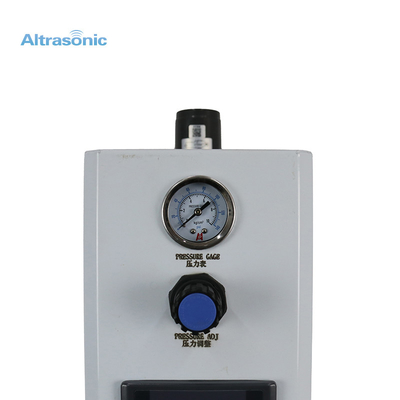

Detailed Images:
