Product Details:
|
| Product Name: | Ultrasonic Plastic Welding Machine | Frequency: | 15k |
|---|---|---|---|
| Power: | 2600w | Max Current:: | 10A |
| Origin: | CHINA | Model: | HS-W15B |
| Warranty: | 1 Year | Certification: | CE |
| Highlight: | Ultrasonic Plastic Welder 15kHz,2600w Ultrasonic Plastic Welder,Pe Ultrasonic Plastic Welding Machine |
||

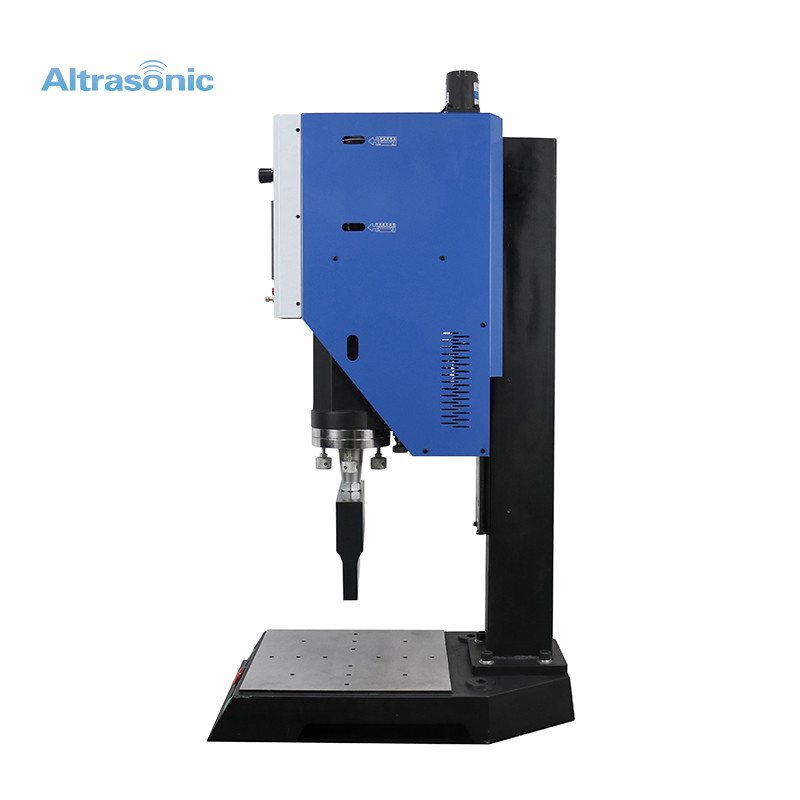

15kHz 2600w Ultrasonic Plastic Welding Machine For Abs Pp Pe
Description:
Ultrasonic welding is a high-tech technology for welding thermoplastic products. All kinds of thermoplastic rubber parts can be processed by ultrasonic welding without adding solvents, adhesives or other auxiliary products.
Specifications:
| Item No | HS-W15B |
| Frequency | 15Khz |
| Power | 2600W |
| Voltage | 200-240V,Alternating current |
| 50-60hz, Single phase | |
| Electric current | 20A |
| Range of welding time | 0.05-10/sec |
| Environment Temperature | 5-50℃ |
| Air supply requirements | Clean dry compressed air, maximum pressure 7kg |
| Maximum pressure | 2.89KN |
| Maximum stroke | 100MM |
| Beats | 50/Min |
| Triggered Dynamic range | 135-990N |
| Weight | 68Kgs |
| Dimension |
476mm(L)*736mm(W)*1524mm(H)
|
Detailed Images:
