Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel

Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel
Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel

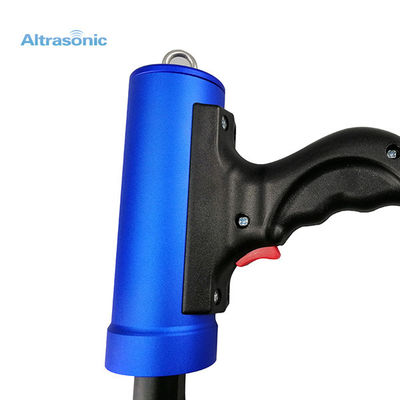

Large Image :  Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GW35
Payment & Shipping Terms:
Minimum Order Quantity: 1PC
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel

Description
Product Name: Ultrasonic Spot Welding Machine Frequency: 35khz
Model Number: HS-GW35 Power: 800W
Horn: ≤10mm Housing Diameter: 51mm
Handle Size: 100mm×45mm×32mm Weight Without Wire And Horn: 20kg
Type: Gun Type Application: Automotive Parts
High Light:

Vehicle Panel Ultrasonic Plastic Spot Welder

,

35KHz Ultrasonic Plastic Spot Welder

,

Vehicle Panel Ultrasonic Spot Welding Machine

Industrial 35 kHz Ultrasonic Plastic Spot Welding Machine For Vehicle Panel

Description:



Ultrasonic plastic spot welding machine has a handheld operation mode. The whole machine is small and easy to carry. It can be welded at various angles. It is mainly used for spot welding, riveting, riveting, welding and other processes of various plastic products.



Specifications:



Model

HS-GW35

Frequency

35kHz

Power

800W

Generator

Digital

Horn Size

Customizable

Horn Material

Titanium alloy



Advantages:



1. High stability: The digital electric box automatically tracks the resonant frequency and adjusts the output frequency to match the handheld device. Once a fault is found, it stops working and gives an alarm. Most of the ultrasonic welding can be completed within 0.1-0.5 seconds.
2. Energy saving and environmental protection: The welding surface is not damaged or deformed, scratches and adhesive residues, and avoids the use of a large number of fixtures, fluxes, and adhesives, reducing labor and cost.
3. Reliable quality: Ultrasonic welding is solidified and formed, and the molecules are recombined to form a strong molecular chain. The weld strength can be close to the strength of the raw material. .
4. Simple operation: Ultrasonic welding is very easy to realize automation. As long as the welding parameters are set, the welding can be carried out without preheating or cleaning.



Application:



The handheld ultrasonic spot welding machine can be used for the welding, riveting, spot welding of films, fabrics, and thermoplastic products, as well as the inlay and edge pressing process between metal parts and plastic parts.

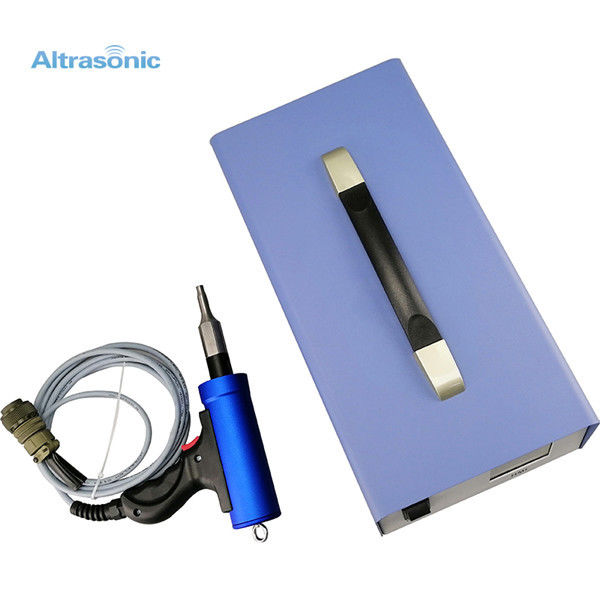

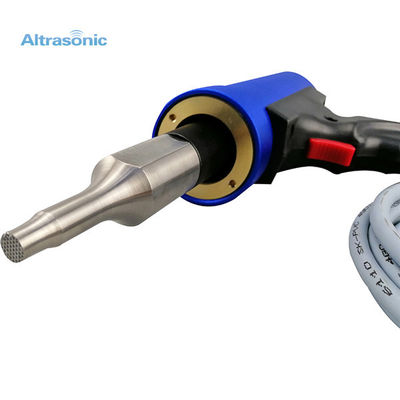

Product display:



Industrial 35KHz ultrasonic plastic spot welder For Vehicle Panel 0
