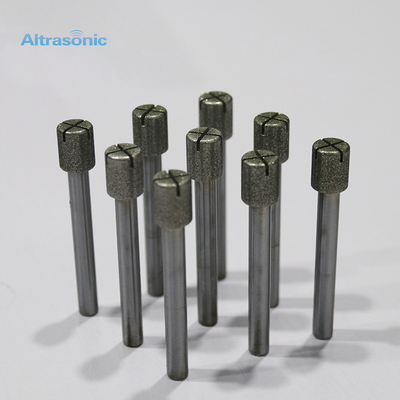

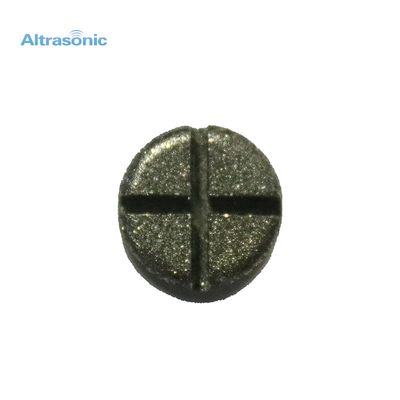

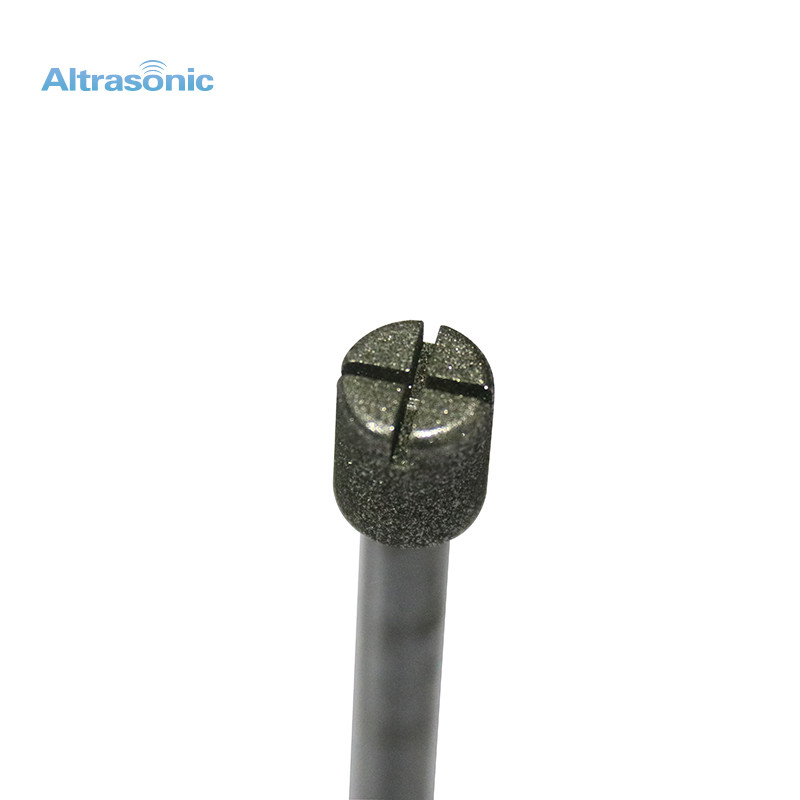

Tool Head Ultrasonic Milling Equipment 20khz 1000w With Drilling Transducer

20khz 1000w Ultrasonic Milling Equipment Tool Head with Ultrasonic Drilling Transducer

Introduction:


The principle of the ultrasonic vibration system of ultrasonic milling machine rotation processing is: the ultrasonic generator converts alternating current into ultrasonic frequency sinusoidal electrical oscillation signal, the transducer converts the electrical oscillation signal into ultrasonic frequency mechanical vibration, and the horn changes the longitudinal direction of the transducer After the vibration is amplified, it is transmitted to the tool head, and the tool head adds rotational motion while making ultrasonic vibration.
Compared with high-speed hard cutting, it does not require high machine tool rigidity and does not damage the metallographic structure of the workpiece surface. In the finish machining of curved contour parts, it is possible to use CNC lathes, machining centers, etc. for profiling machining, which can save the expensive purchase cost of CNC grinders.

Advantages:

1. Fast processing speed

2. Convenient processing

3. Good surface quality

4. Wide adaptability to processing materials

5. The tool wear is small and the service life is long

Specification:

Applications:

Because ultrasonic vibration milling has so many advantages, it can be widely used in the milling of various difficult-to-machine materials in aviation, aerospace, and other fields.
Milling of difficult-to-machine materials: such as heat-resistant steel, titanium alloy, constant elastic alloy, high-temperature alloy, stainless steel, chilled cast iron, engineering ceramics, composite materials and granite, etc.
