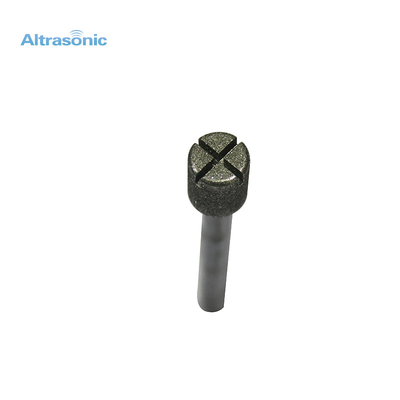

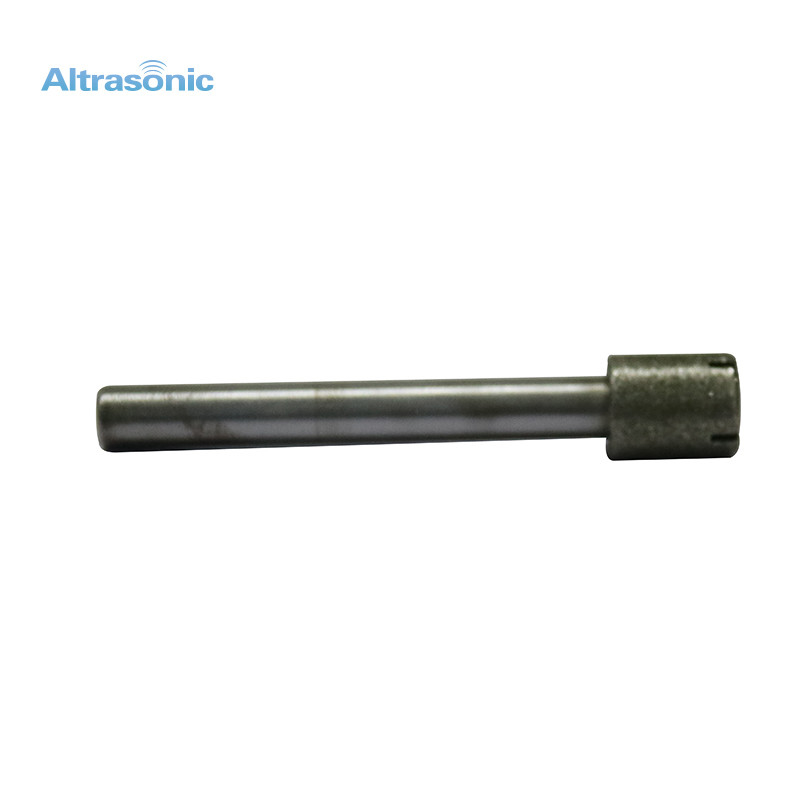

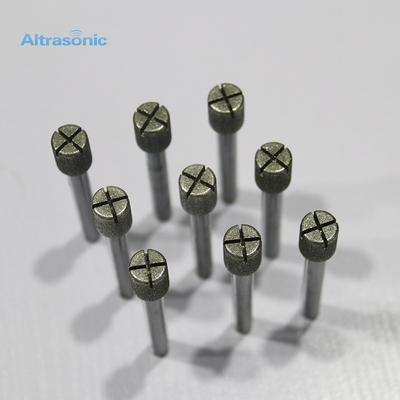

20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn

20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn
20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn 20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn 20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn

Large Image :  20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 15-30 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn

Description
Frequency: 20Khz Output Power: 1000w
Voltage: 220v Switch: Handle Or Foot Switch
Power Adjusting: Step Or Continuous Working Time Control: 24 Hours
Weight: 30KG ( Determined By The Size Of The Horn ) Generator: Digital Generator
High Light:

20khz Ultrasonic Milling Equipment

,

1000w Ultrasonic Milling Equipment

,

Milling Tool Ultrasonic Assisted Machining

OEM Factory Price 20khz 1000w Ultrasonic Milling Equipment cnc machined Horn



Introduction:


The principle of the ultrasonic vibration system of ultrasonic milling machine rotation processing is: the ultrasonic generator converts alternating current into ultrasonic frequency sinusoidal electrical oscillation signal, the transducer converts the electrical oscillation signal into ultrasonic frequency mechanical vibration, and the horn changes the longitudinal direction of the transducer After the vibration is amplified, it is transmitted to the tool head, and the tool head adds rotational motion while making ultrasonic vibration.
Compared with high-speed hard cutting, it does not require high machine tool rigidity and does not damage the metallographic structure of the workpiece surface. In the finish machining of curved contour parts, it is possible to use CNC lathes, machining centers, etc. for profiling machining, which can save the expensive purchase cost of CNC grinders.



Specification:



Frequency 20 Khz
Output Power 1000 W
Voltage 220 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weignt 30 KG ( Determined by the size of the horn )
Generator Digital Generator



Advantages:

1. Fast processing speed

2. Convenient processing

3. Good surface quality

4. Wide adaptability to processing materials

5. The tool wear is small and the service life is long



Application:

Crystal, precious stones, agate, jade, glass products, ceramic utensils and germanium, silicon, ferrite and other high hardness materials drilling and carving.



20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn 0



Transport and Packaging:



20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn 1

Payment:

20khz 1000w Ultrasonic Milling Equipment Cnc Machined Horn 2
