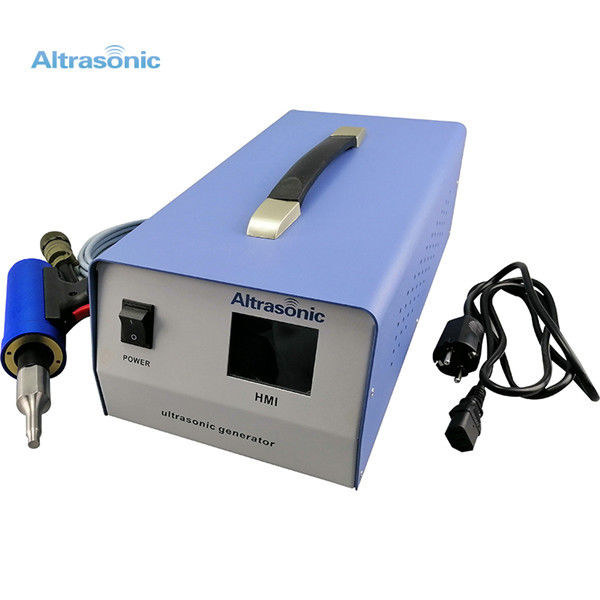

Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts

Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts
Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts

Large Image :  Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GW35
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts

Description
Model: HS-GW35 Frequency: 35khz
Power: 800Watt Horn: ≤12mm
Generator: Digital Generator Warranty: 1 Year
Certification: CE Service: Online Service
High Light:

Digital Generator Ultrasonic Spot Welders

,

800w Ultrasonic Spot Welders

,

Auto Parts Ultrasonic Spot Welding Machine

35kHz 800w ultrasonic spot welders with Digital Generator for auto parts



Description:

Ultrasonic spot welding can be used for strong ultrasonic spot welding on soft plastic sheets such as ABS, polyethylene, polypropylene, PVC, etc.



Specifications:


Frequency:35khz
Power:800watt
Generator:Digital generator
Welding head:≤12 mm
Dia of shell:51 mm



Detailed Images:

Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts 0Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts 1







Welding principle:


Ultrasound is a mechanical vibration, similar to the vibration produced by musical instruments. These vibrations are called ultrasonic waves because their frequency is higher than human hearing (greater than 16 kHz). In the acoustic component, these pressure waves are generated by a generator. This will send alternating current at the same frequency as the converter (or transducer). Then, a transducer made of piezoelectric ceramics converts this energy into mechanical vibration. Then, mechanical vibration will generate thermal friction, which will stimulate the molecules of the material being welded to start moving. Ultrasonic energy will melt the contact points between the two parts, thereby forming a joint, allowing the parts to bond quickly.





Digital Generator 35kHz 800w Ultrasonic Spot Welders For Auto Parts 2
