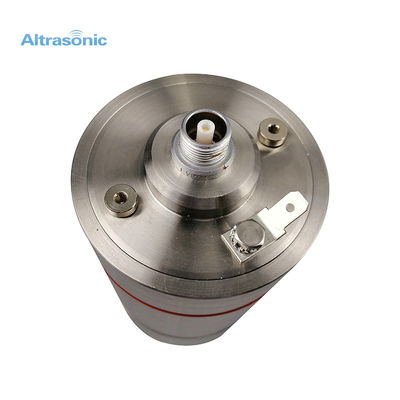

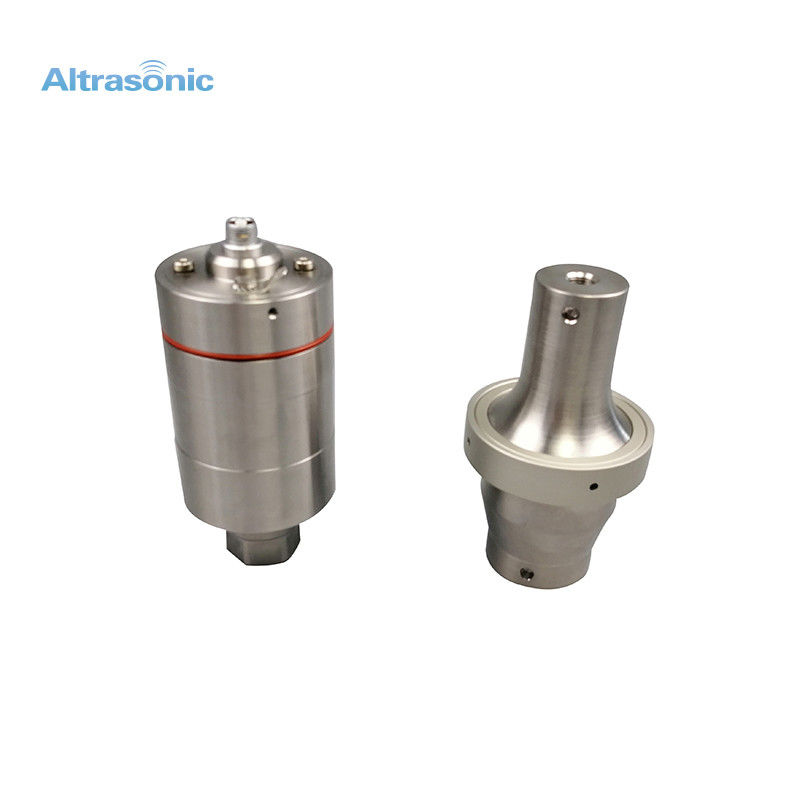

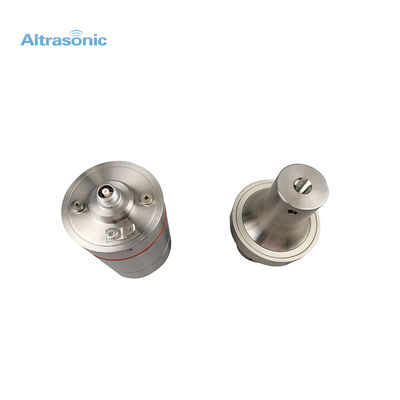

High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding

High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding
High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding

Large Image :  High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Model Number: HSHM20
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case.
Delivery Time: 7 days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding

Description
Frequency: 20kHz Output Power: 3000 Watt
Joint Bolt: M18 * 1.5 Capacitance: 5000-8000pf
Amplitude: 10 Um Application: Welding Machine
Model: HSHM20 Certificate: CE
Warranty: 1 Year Aftersales Service: Online Service
High Light:

20khz Ultrasonic Transducer 3000 Watt

,

Replacement Herrmann 20khz Ultrasonic Transducer

,

High Power Ultrasonic Converter

High Power Replacement Herrmann Converter 20khz Ultrasonic Transducer For Welding



Specifications:



Model HSHM20
Frequency 20 khz
Output power 3000 watt
Joint bolt M18 * 1.5
Capacitance 5000-8000pf
Amplitude 10 um
Application welding machine



Description:



It is applied to Herrmann type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.



Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,

packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.





High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding 0High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding 1High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding 2High Power 20khz Ultrasonic Transducer Replacement Herrmann For Welding 3
