Product Details:
|
| Product Name: | Welding Transducer | Frequency: | 35Khz |
|---|---|---|---|
| Power: | 1000W | Connect Screw: | M8*15 |
| Capacitance: | 5-8nF | Application: | Welding |
| Ceramic: | 4 Pcs | Certificate: | CE |
| Warranty: | 1 Year | Aftersales Service: | Online Service |
| Highlight: | Ultrasonic Welding Transducer 1000W,Herrmann 35K Ultrasonic Transducer,Ultrasonic Transducer 35Khz |
||

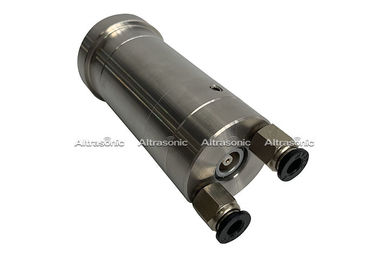

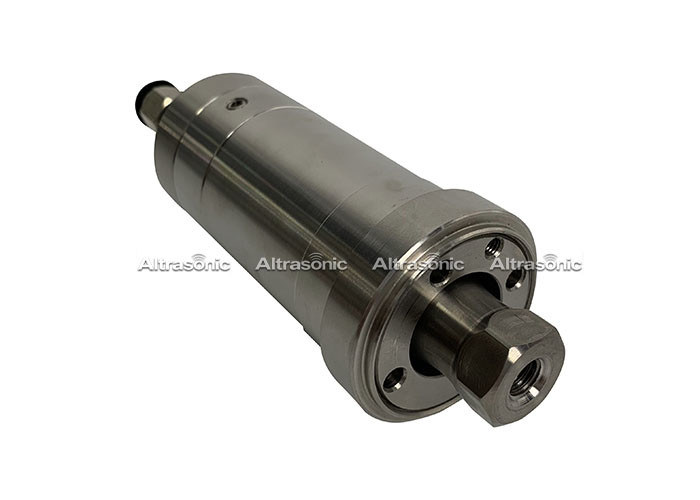

High Efficiency Replacement Herrmann Ultrasonic Transducer 35Khz With Long Service Life
Specifications:
| Model | Replacement Herrmann 35K |
| Frequency | 35 khz |
| Output power | 1000 watt |
| Joint bolt | M18 * 1.5 |
| Capacitance | 5000-8000pf |
| Amplitude | 10 um |
| Application | welding machine |
Description:
It is applied to Herrmann type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.
Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.
Competitive Advantage:
Service: Timely feedback; Free design; 1 year Warranty.
Quality: Full testing before shipping; Our reputation from customer.
