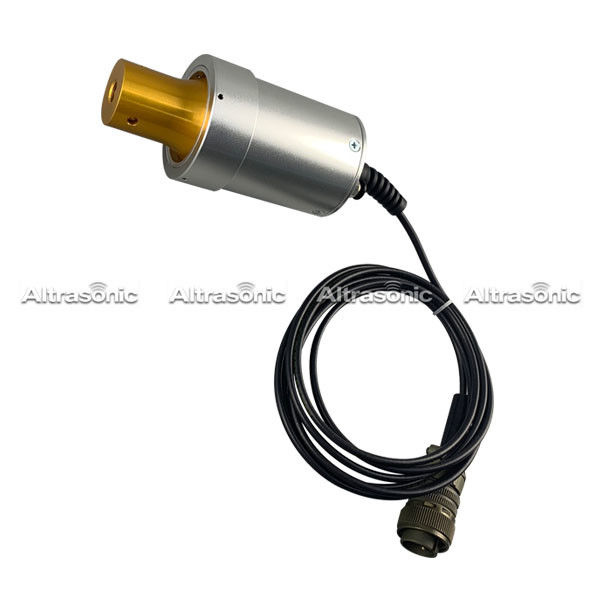

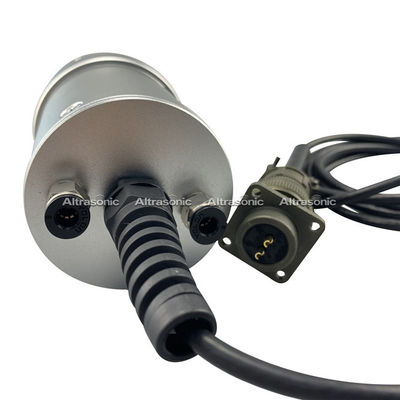

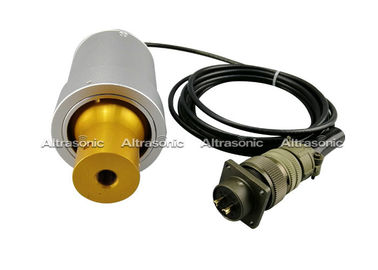

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics
Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Large Image :  Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-D41S30
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Delivery Time: 5 workdays
Payment Terms: T/T, Western Union,paypal

Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics

Description
Frequency: 20kHz Output Power: 1000-3000watt
Joint Bolt: 1/2-20 UNF Ceramic Disc Diameter: 50mm
Qty Of Ceramic Discs: 4pcs Capacitance: 11nf
Amplitude: 20 Um Application: Plastic Welding Machine
Warranty: 1 Year Aftersales Service: Online Service
High Light:

Replacement Dukane 20kHz Ultrasonic Transducer

,

Four Ceramics Ultrasonic Welding Transducer

,

Dukane Type Ultrasonic Welding Transducer

Replacement Dukane 20kHz 4 Ceramics Ultrasonic Welding Transducer 41S30



Specifications:



Model HS-D41S30
Frequency 20Khz
Output power 1000-3000 watt
Joint bolt 1/2-20 UNF
Ceramic disc Diameter 50mm
Qty of ceramic discs 4pcs
Capacitance 11nf
Amplitude 20 um
Application Plastic welding machine



Description:



It is applied to Dukane type ultrasonic welding machine.





The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.





Applied Industries :automobile industry, electric industry, medical industry, household appliance industry, non woven fabric

clothing, packing, office supplies, toys, etc.

Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.

Our Service:


Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.

Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.



Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics 0Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics 1





Factory workshop:





Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics 2



Replacement Dukane Ultrasonic Welding Transducer 20kHz 4 Ceramics 3
