Product Details:
|
| Frequency: | 20kHz | Output Power: | 1000-3000watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Ceramic Disc Diameter: | 50mm |
| Qty Of Ceramic Discs: | 4pcs | Capacitance: | 11nf |
| Amplitude: | 20 Um | Application: | Plastic Welding Machine |
| Warranty: | 1 Year | Delivery Time: | 5 Workays |
| High Light: | Dukane 41S30 20kHz Ultrasonic Transducer,Dukane 41S30 Ultrasonic Welding Transducer,Ceramic Discs Ultrasonic Welding Transducer |
||

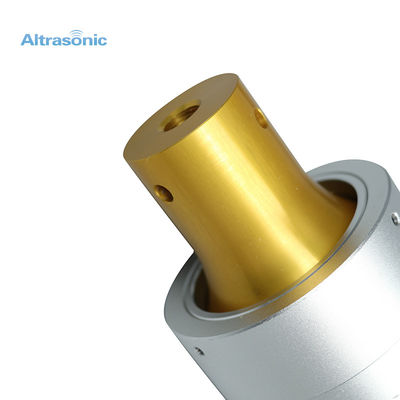

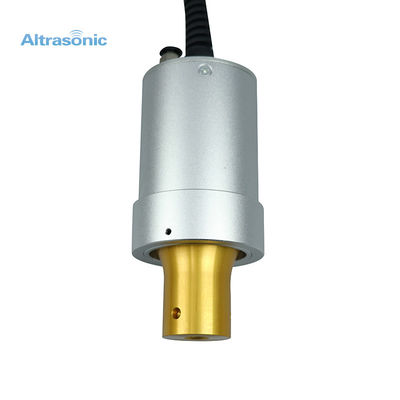

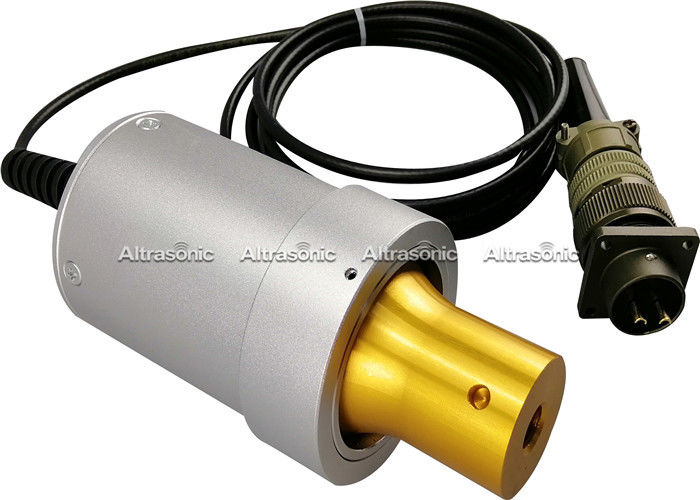

Factory Direct Sale 20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement
20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement
Specifications:
| Model | HSD41S30 |
| Frequency | 20Khz |
| Output power | 1000-3000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50mm |
| Qty of ceramic discs | 4pcs |
| Capacitance | 11nf |
| Amplitude | 20 um |
| Application | Plastic welding machine |
The 20kHz Dukane 41S30 Ultrasonic Welding Transducer Replacement is applied to Dukane type ultrasonic welding machine.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applied Range:
Conforming to the spirit of "Service First", ALTRASONIC provides lifetime maintenance to its products for as long as they are used by customers.
Altrasonic’s service team is 24/7 available for support. Our well trained and experienced service engineers advise and support on-line or if necessary on location. Whether a custom-made production line or a standard machine: we always ensure that production can be resumed as soon as possible.
