800 Watt 4 Ceramics Ultrasonic Converter 40kHz For Replacement Branson 4TH

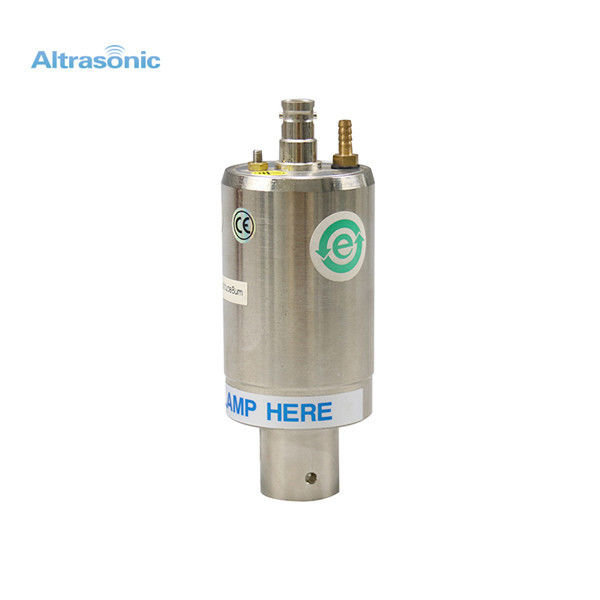

Large Image : 800 Watt 4 Ceramics Ultrasonic Converter 40kHz For Replacement Branson 4TH

Product Details:

Place of Origin:	China
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-B4TH

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	3 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	10,000 units per month

Contact Now

800 Watt 4 Ceramics Ultrasonic Converter 40kHz For Replacement Branson 4TH

Description

Product Name:	Ultrasonic Converter	Frequency:	40 Khz
Ceramic Diameter:	25 Mm	Capacitance:	4.5 -5.3 Nf
Power:	500 Watt	Application:	Welding Machine
Amplitude:	6 Um	Ceramic Disc:	4 Pcs
Material:	Titanium, Aluminum Materials Optional	Protective Housing:	Aluminum And Stainless Steel Optional
Highlight:	Titanium Ultrasonic Transducer 40kHz , 4 Ceramics Ultrasonic Converter , 800 Watt Ultrasonic Transducer 40kHz

40kHz 800Watt Replacement Branson 4TH Transducer Ultrasonic Converter

Specifications:

Model	HS-B4TH
Frequency	40 khz
Intput power	800 watt
Joint bolt	M8
Ceramic disc Diameter	25 mm
Quantity of Ceramic discs	4 pcs
Capacitance	4.5 -5.3 nf
Amplitude	6 um
Application	welding machine

Description:

The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that delivers lower cost, rugged quality and superior value.

Competitive Advantages:

1. Titanium materials and Aluminum materials optional.

2. High efficiency.

3. High-quality materials are matched with selected materials, perfect resonance image.

4. Large amplitude and long service life.

5. Stable design can protect sensitive ultrasonic components.

6. The design of 4 piezoelectric disks can achieve the maximum output amplitude.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

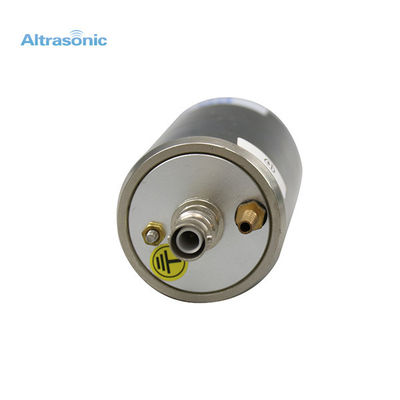

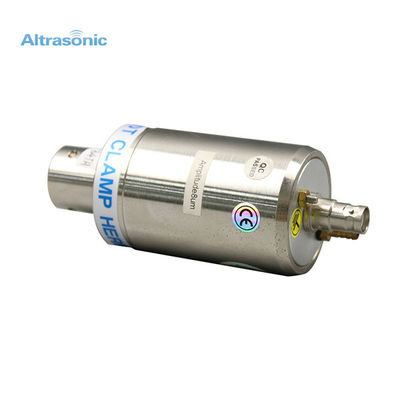

Product display

800 Watt 4 Ceramics Ultrasonic Converter 40kHz For Replacement Branson 4TH 0
