Product Details:
|
| Joint Bolt: | 1/2-20UNF | Ceramic Diameter: | 50mm |
|---|---|---|---|
| Application: | Welding | Qty Of Ceramic: | 4pcs |
| Capacitance: | 11-12nF, 12-13.5nF, 14.5-16nF | Power: | 1500watt |
| Amplitude: | 12um | Certification: | CE |
| Warranty: | 1 Year | Frequency: | 20kHz |
| Highlight: | Bolt Fastened Ultrasonic Transducer 20kHz,1500 Watt Ultrasonic Welding Transducer,50mm Ceramic Ultrasonic Welding Transducer |
||

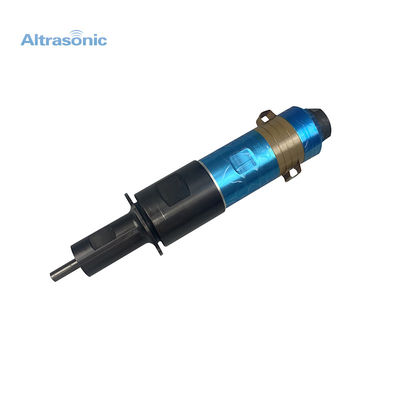

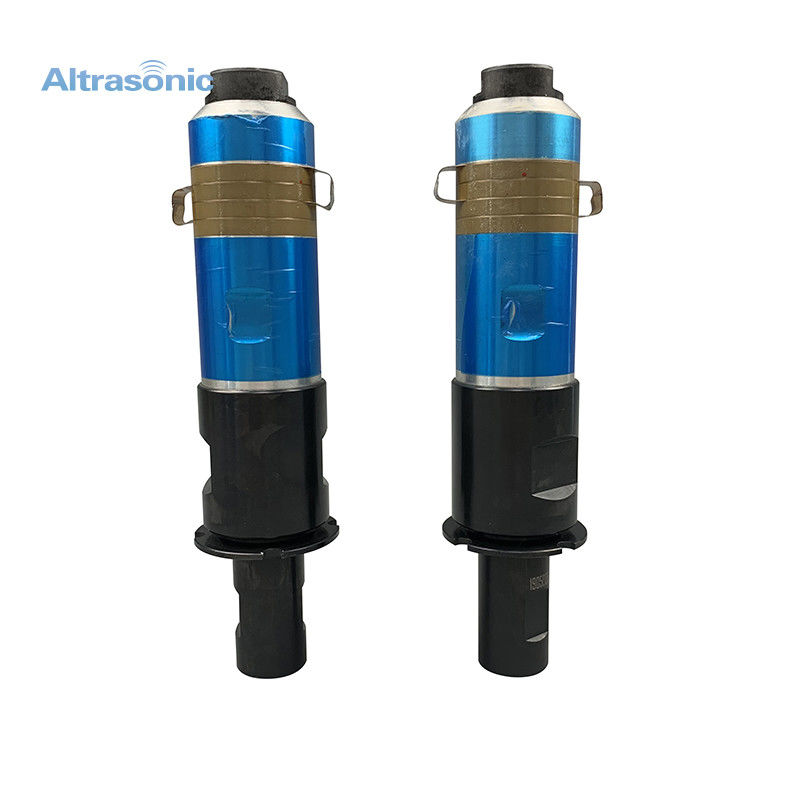

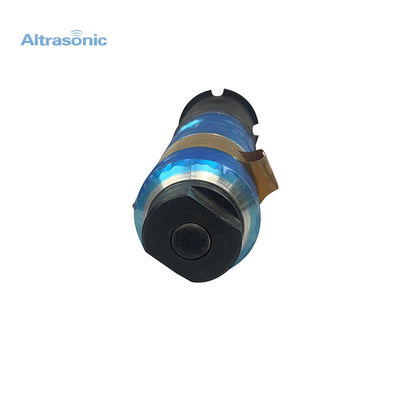

| Product Name | Ultrasonic Transducer |
Joint Bolt |
1/2-20UNF |
| Diameter Ceramic | 50mm | Capacitance | 11~16nf |
| Type | NTY Type | Application | Welding |
What is Ultrasonic Welding ?
Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.
Main Features
1. High mechanical quality
2. Piezoelectric element offer a high speed of vibration.
3. Having steady output amplitude even the load markedly changed.
4. Extended using temperature, ensuring good amplitude linearity
5. Bolt-on mounting gives the fast, easy installation and high reliability.
6. easy for assembling
7. good heat resistance
8. large range of working temperature
9. low resonance impedance and heat productivity
10. good construction
11. fastened by bolt
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
