Product Details:
|
| Joint Bolt: | 1/2-20UNF | Ceramic Diameter: | 50mm |
|---|---|---|---|
| Application: | Welding | Qty Of Ceramic: | 6pcs |
| Capacitance: | 19-21nF,22.5-25nF | Power: | 2000watt |
| Amplitude: | 12um | Certification: | CE |
| Warranty: | 1 Year | Frequency: | 20kHz |
| Highlight: | Plastic Welding Ultrasonic Ceramic Transducer,50mm Dia Ultrasonic Ceramic Transducer,2000 Watt Ultrasonic Transducer 20Khz |
||
Specifications:
|
Model |
HS-5020-6D |
|
Frequency |
20khz |
|
Output power |
2000watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50mm |
|
Quantity of Ceramic discs |
6pcs |
|
Amplitude |
12um |
|
Application |
Welding |
Description:

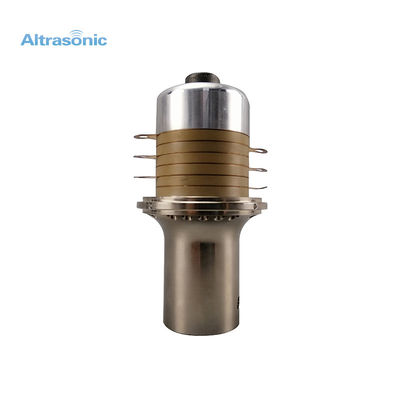

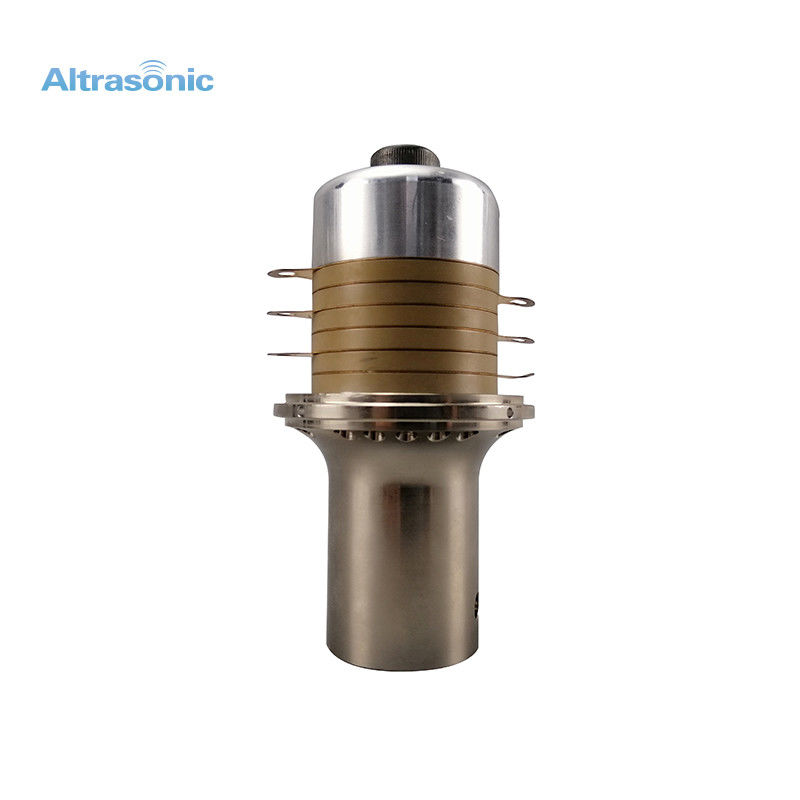

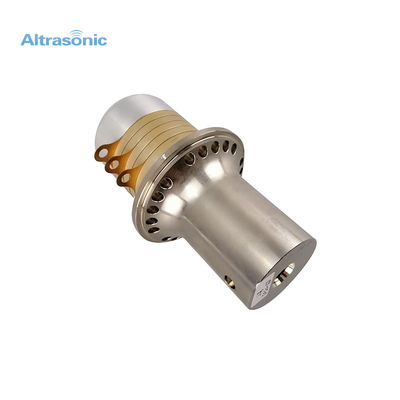

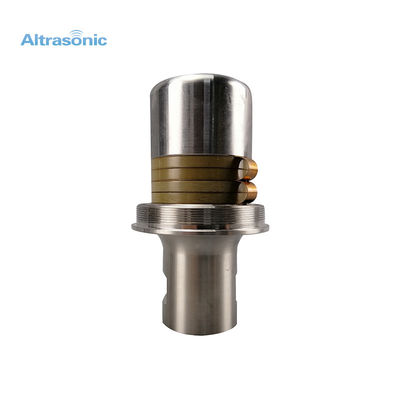

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.
