Product Details:
|
| Joint Bolt: | 1/2-20UNF | Ceramic Diameter: | 50mm |
|---|---|---|---|
| Application: | Welding | Qty Of Ceramic: | 4pcs |
| Capacitance: | 11-12nF, 12-13.5nF,14.5-16nF | Power: | 1500watt |
| Amplitude: | 12um | Certification: | CE |
| Warranty: | 1 Year | Frequency: | 20kHz |
| High Light: | 50mm Diameter Ultrasonic Transducer,1500 Watt Ultrasonic Transducer 20Khz,4pcs Ceramic Discs Ultrasonic Transducer |
||
Specifications:
|
Model |
HS-5020-4D |
|
Frequency20 |
khz |
|
Output power |
1500watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50mm |
|
Quantity of Ceramic discs |
4pcs |
|
Amplitude |
12um |
|
Application |
Welding |

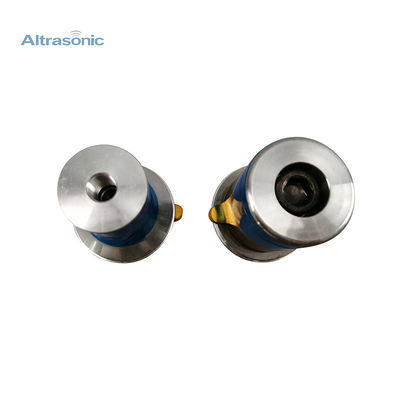

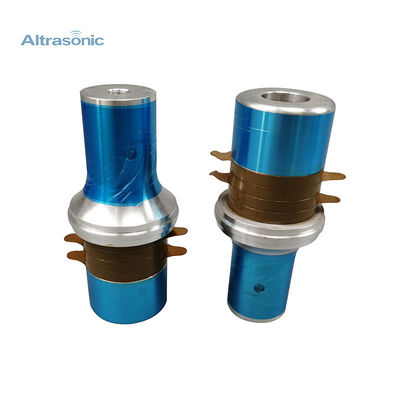

Description:

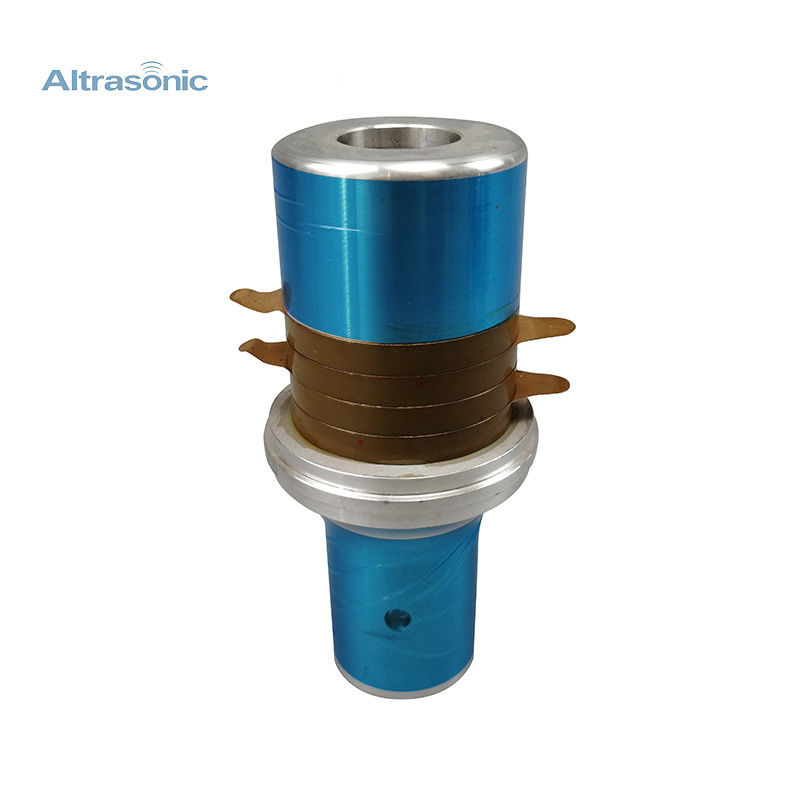

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.
