Product Details:
|
| Joint Bolt: | M20*1.5 | Ceramic Diameter: | 70mm |
|---|---|---|---|
| Application: | Welding | Qty Of Ceramic: | 4pcs |
| Capacitance: | 12.5-14nF, 17-19nF | Power: | 2600watt |
| Amplitude: | 16um | Certification: | CE |
| Warranty: | 1 Year | Frequency: | 15kHz |
| High Light: | 2600W Ultrasonic Transducer 15Khz,Aluminum Booster Ultrasonic Transducer 15Khz,Aluminum Booster Ultrasonic Welding Transducer |
||
Specifications:
|
Model |
HS-7015-4Z |
|
Frequency |
15khz |
|
Output power |
2600watt |
|
Joint bolt |
M20*1.5 |
|
Ceramic disc Diameter |
70mm |
|
Quantity of Ceramic discs |
4pcs |
|
Amplitude |
16um |
|
Application |
Welding |
Description:

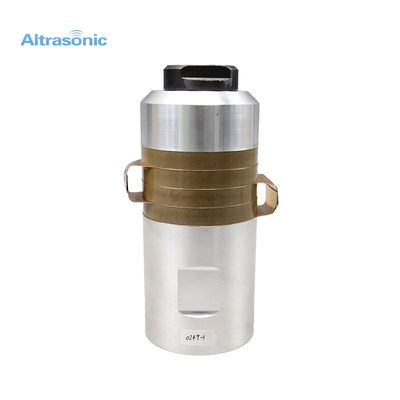

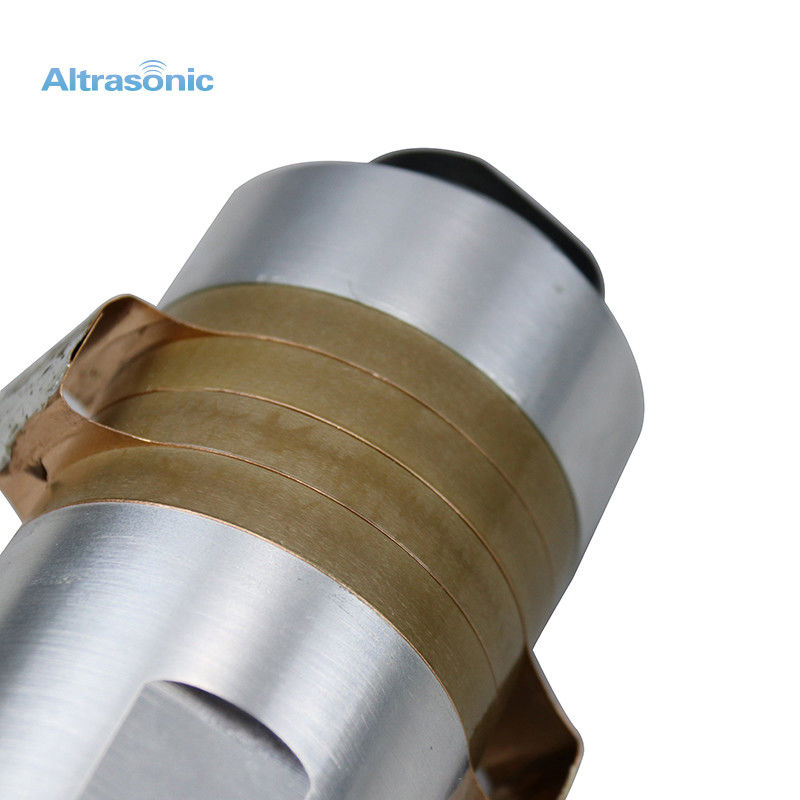

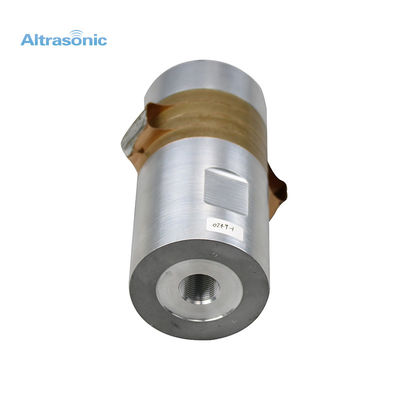

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Applications:
Widely used in ultrasonic welding, ultrasonic cutting,ultrasonic sewing machine,ultrasonic sonochemistry, ultrasonic wire stripping machine,ultrasonic nebulizer,Ultrasonic riveting machine.
We also provide replacement of famous brands such as Branson, Dukane, Rinco etc.
