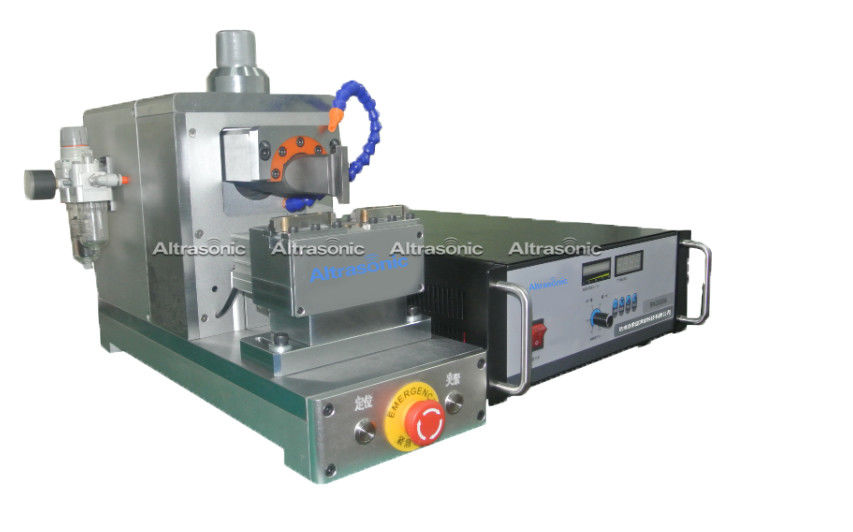

20kHz Ultrasonic Metal Welding Machine With Digital Generator

20kHz Ultrasonic Metal Welding Machine With Digital Generator
20kHz Ultrasonic Metal Welding Machine With Digital Generator

Large Image :  20kHz Ultrasonic Metal Welding Machine With Digital Generator

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-2020
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 10 work days
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 200 Set per month

20kHz Ultrasonic Metal Welding Machine With Digital Generator

Description
Frequency: 20Khz Power: 2000w
Generator: Digital Generator Input Voltage: 3800V/16A
Control: CPU Control,automatic Scanning/tracking Components: Digital Generator, Transducer, Booster, Welding Horn
High Light:

20k Ultrasonic Metal Welding Machine

,

20kHz Ultrasonic Spot Welding Machine

,

Digital Generator Ultrasonic Metal Welding Machine

20kHz Ultrasonic Metal Welding Machine Ultrasonic Spot Welder Equipment





Specification:

Model Operating Frequency Operating Pressure Suitable Wire size Power Operating mode Dimension Weight
HS-2032JX-AT 20KHZ 1kgf/cm2-6.0kgf/cm2 5-25mm2 380v/16A Manual 900*600*110 45kgs
HS-2020JX-AT 35KHZ 1kgf/cm2-6.0kgf/cm2 1-12mm2 220v/10A Manual 200*550*250 35kgs






Characteristic:

● Adopts automatic control technology to make welding operation easy and simple

● The ultrasonic system is stable and reliable

● An ideal production equipment for welding similar or different conductive alloys and non-ferrous metals of different thicknesses

● Ultrasonic solar metal welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel

● Simple mechanism and easy to install



Application:

  • Polyethylene-aluminum pipe(PAP),Aluminum-Plastic laminated tube production
  • Heat exchanger tube sheet welding
  • Solar collector board
  • Aluminum corrugated board processing
  • Electric heating device, heating tube aluminum-copper welding
  • Solar fin welding



Principle of Ultrasonic Metal Welding:

Ultrasonic metal welding uses high-frequency vibration waves to transmit to two metal surfaces to be welded. Under pressure, the two metal surfaces rub against each other to form a fusion between molecular layers.



20kHz Ultrasonic Metal Welding Machine With Digital Generator 0
