Product Details:
|
Product Name: | 70 KHz Ultrasonic Inlay Welder | Frequency: | 70Khz±1 KHz |
---|---|---|---|
Threading Hole: | Φ0.3mm Or Φ0.5mm | Generator: | Digital Generator |
Cover Dimension: | Φ16X121mm | Welding Type: | Hand Held Operation |
High Light: | 70kHz Ultrasonic Welding Machine,Copper Wire Ultrasonic Welding Machine,Titanium Alloy Ultrasonic Welding Machine |

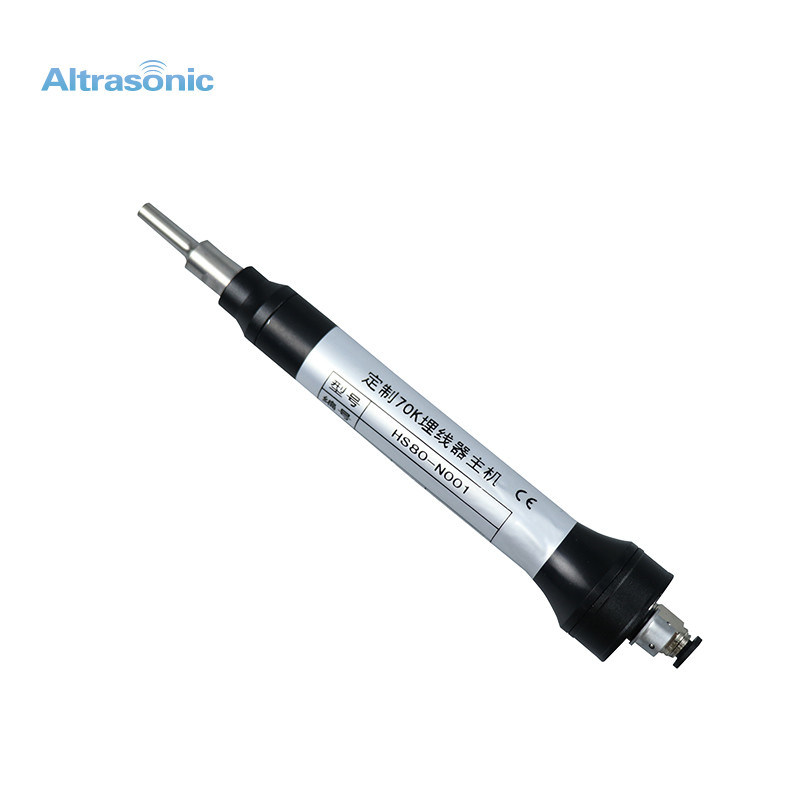

70kHz Copper Wire Ultrasonic Welding Machine Titanium Alloy Head
Description:
Ultrasonic Wire Antenna Technology is a high speed system for embedding antenna wire within a non-conductive (e.g. plastic) sheet on which electronic chips are mounted for manufacturing a plurality of smart cards, or the like.
Specifications:
Type | HS-W70D |
Frequency(KHz) | 70KHz |
Trigger | External control |

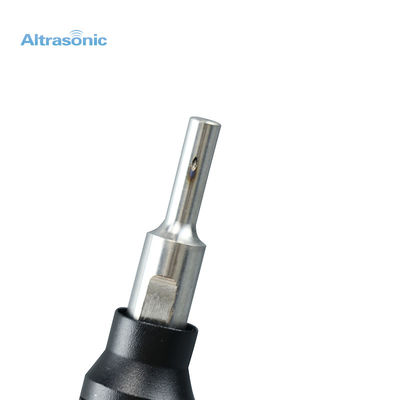

welder head | Titanium Alloy Material |
Threading hole | Φ0.3mm or Φ0.5mm |

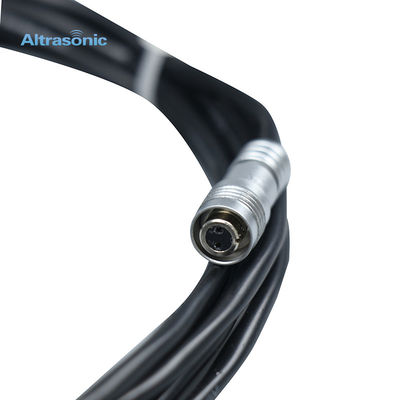

Power code | 5M |
Generator | Digital generator |
Generator Size | 155*265*170mm |
Cover dimension | Φ16X121mm |
Cover material | Aluminum |
Cooling way | compressed air cooling (Φ4mm conduit) |
Speed | 0.1-0.3m/s |
Thread fixed cycle | length 60000 m/s |
Compare with etching antenna technology:
Ultra-thin IC card is made possible by ultrasonic embedding process.It will effectively solve the problem of the failure of etching antenna technology in the application of ultra-thin IC card, which can reduce the scrap rate and reuse cost.The ultra-thin IC card produced by using the ultrasonic embedding process is the same as the IC card manufactured by the traditional process, so its average service life will be longer than the ultra-thin IC card produced by using the etching antenna (6 years) process. Two different processes, the material difference is mainly in the antenna part, the antenna material used in the etching antenna process is a PET (polyethylene terephthalate, PET) sheet with a thickness of 0.078 mm and a precision etched aluminum wire, and Ultrasound embedding process antenna for enameled copper wire, the same production performance of an IC card, according to the material price of etching antenna price is about 2 times the price of copper, so the use of ultrasonic embedding process to produce ultra-thin IC card The price is also slightly better. The mass production of ultra-thin IC CARDS will have a profound impact on the continuous development of the smart card industry.
Detailed images:
Tag: ultrasonic spot welder,sonic welding machine
FAQ:
1. What is ultrasonic puncture welding?
Ultrasonic puncture welding is only one kind of ultrasonic welding. It belongs to energy welding or destructive welding. It is widely used in auto industry.
2. How to use ultrasonic puncture welding technology?
It was decided by product material, best of same material, or a mixture of materials and other materials. It depends on whether the ultrasonic wave of two kinds material can be fused. You can send the material to try to test.
3. How to design ultrasonic puncture welding?
Usually it is up and down welding. The characteristics of puncture welding, there will certainly be a scar on one side, the other side may not be seen. Many customers are concerned about material issues and also they care about how to design. There are some differences in the products of different ultrasonic puncture welding.
4. What is the ultrasonic welding machine of mud guard and soundproof cotton?
The ultrasonic welding machine of mud guard and Soundproof cotton, the ultrasonic technology is used to weld the two cotton with ultrasonic puncture technology, which is used to weld the auto wheel cover and replace the original binding process. The ultrasonic welding is stable, and the sound insulation effect of loading test meets the standard.Front and rear wheel covers also need ultrasonic welding, you can use a handheld ultrasonic welding machine for welding, also can use multi-head ultrasonic welding or robot welding if large quantity, compared to handheld ultrasonic welding machine, it is low cost and durable.
