Product Details:
|
| Frequency: | 20kHz | Power: | 4000watt |
|---|---|---|---|
| Welding Area: | 1-30mm2 | Working Are Pressure: | 0.05-0.9MPa |
| Voltage: | 220V | Weight: | 28KGs |
| Working Head Size: | 550*250*240mm | Machine Size: | 540*380*150mm |
| High Light: | 30mm2 Ultrasonic Metal Welding Machine,20kHz Ultrasonic Wire Welding Machine,20kHz Ultrasonic Wire Welder |
||

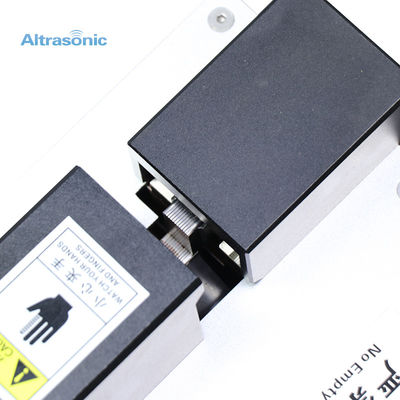

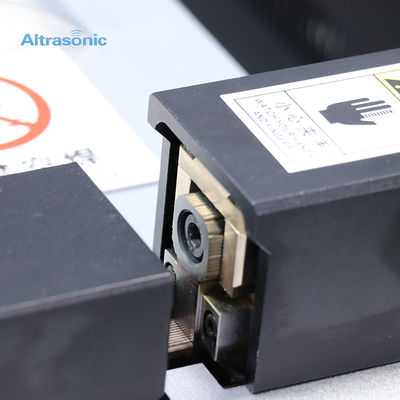

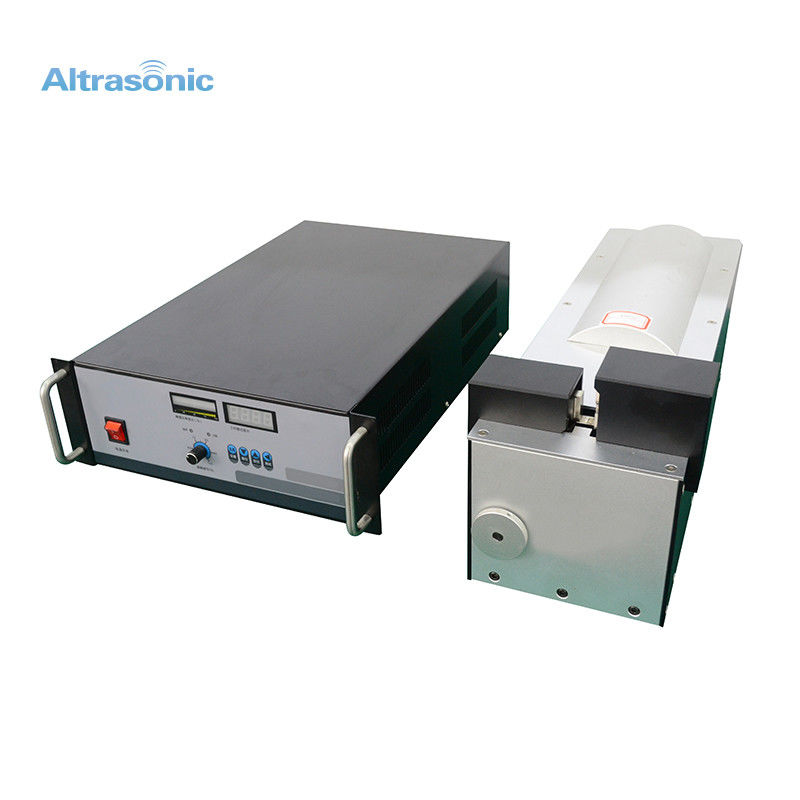

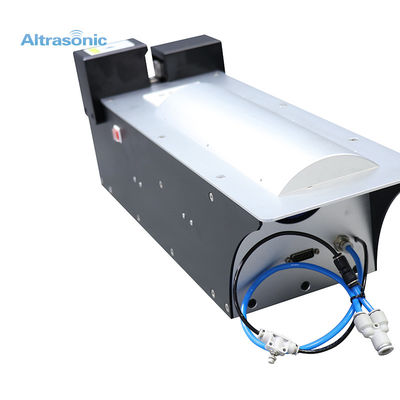

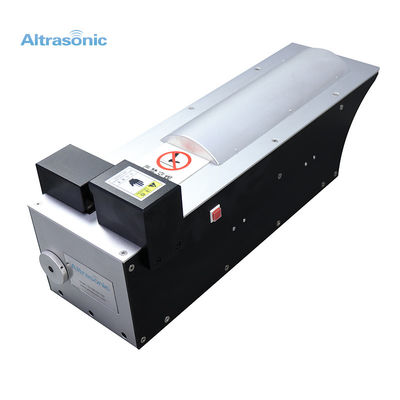

20kHz Ultrasonic Metal Welding Machine Ultrasonic Wire Welding Machine
Specifications:
|
Model No#
|
HS-X2020A
|
HS-X2030A
|
HS-X2040A
|
|
Power
|
2000W
|
3000W
|
4000W
|
|
Welding area
|
0.5-16mm²
|
0.5-20mm²
|
1-30mm²
|
|
Working air pressure
|
0.05-0.9MPa
|
0.05-0.9MPa
|
0.05-0.9MPa
|
|
Frequency
|
20kHz
|
20kHz
|
20kHz
|
|
Voltage
|
220V
|
220V
|
220V
|
|
Weight
|
18KGs
|
22KGs
|
28KGs
|
|
Working head Size
|
530*210*230mm
|
550*220*240mm
|
550*250*240mm
|
|
Machine Size
|
540*380*150mm
|
540*380*150mm
|
540*380*150mm
|
Advantages:
A. Welding materials do not melt, not fragile metal characteristics
B. After welding, the electrical and thermal conductivity are good, and the resistivity is very low or nearly zero
C. Low requirements on the surface of the welded metal, both oxidation and electroplating can be welded
D. Short soldering time, without any flux, gas, or solder
E. Easy to realize the connection and automatic control between dissimilar metals
F. Welding without sparks, fast and environmentally safe
Features:
1. Simple operation, easy maintenance;
2. High welding efficiency, fast speed;
3. Working frequency detection;
4. Long tool life, replace convenient and quick ;
5. Cost reduction, good electrical conductivity after welding, low or almost zero resistance coefficient.
6. Short welding time without any flux, gas and solder, which is green for environment.
