Product Details:
|
| Frequency: | 20 Khz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Ceramic Disc Diameter: | 50mm |
| Quantity Of Ceramic Discs: | 6pcs | Capacitance: | 19-21nf |
| Amplitude: | 20um | Application: | Welding |
| High Light: | 50mm Ultrasonic Transmitter 20khz,21nf Ultrasonic Transmitter 20khz,50mm 20khz transducers |
||

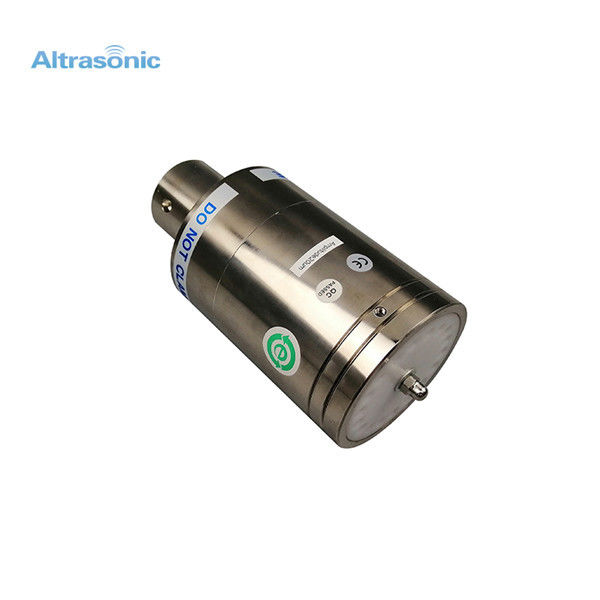

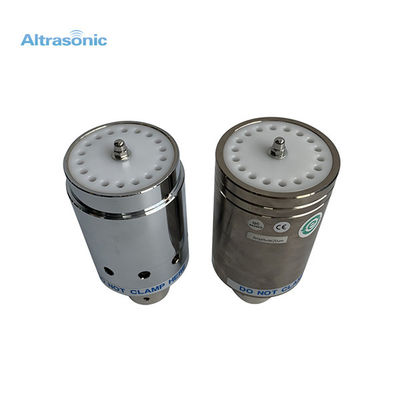

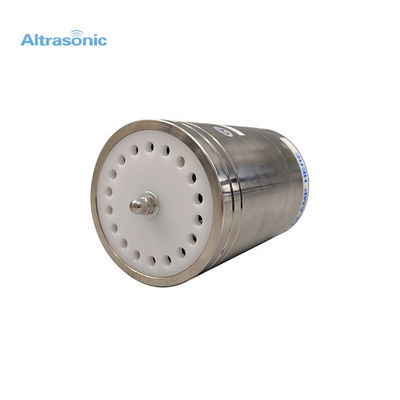

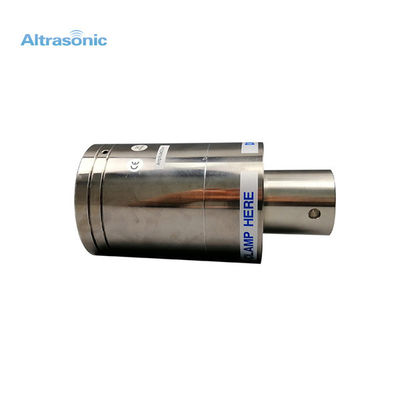

20khz high quality Ultrasonic Welding Transducer Replacement Branson CJ20
Specifications:
| Model | HSBCJ20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
