15khz 4200w Ultrasonic Double Transducer With Booster

15khz 4200w Ultrasonic Double Transducer With Booster
15khz 4200w Ultrasonic Double Transducer With Booster 15khz 4200w Ultrasonic Double Transducer With Booster

Large Image :  15khz 4200w Ultrasonic Double Transducer With Booster

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-6015-4ZD
Payment & Shipping Terms:
Minimum Order Quantity: 1PCS
Price: Negotiable
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 5,000 units per month

15khz 4200w Ultrasonic Double Transducer With Booster

Description
Product Name: Ultrasonic Welding Transducer Ceramic Diameter: 60mm
Type: Standard Type Frequency: 15khz
Booster Color: Gray And Black Optional Application: Welding Big Plastic Samples
High Light:

ultrasonic double transducer

,

15khz double transducer

,

4200w double transducer

Ultrasonic Double Transducer with Booster 15khz 4200w



Description:

Altrasonic applies the highest standards of quality and safety during development and in the manufacture of ultrasonic converters. These high standards which we always strive to maintain and evolve are a key part of our success. And our customers benefit from them especially.



Specifications:

Model HS-6015-4Z double
Frequency 15khz
Output power 4200watt
Joint bolt M20 1.5
Ceramic disc Diameter 60 mm
Quantity of Ceramic discs 8 pcs
Capacitance 8-10 nf ,10-12nf , 12.5-13.5nf
Amplitude 30-40 um
Application Welding





Competitive Advantage:

1. Stable parameters

2. Easy matching with ultrasonic power supply

3. Superior raw materials

4. Accept OEM cooperation

5. One year maintaining service



Key Features:

· Power range from100W to 6000 W

· Frequency range from 15 kHz to 70 kHz

· 98% efficiency

· Tough stainless steel casing

· Easy to assemble without special tools

· Compressed air cooling connection*

· good construction

· Piezoelectric element offer a high speed of vibration.

. large range of working temperature

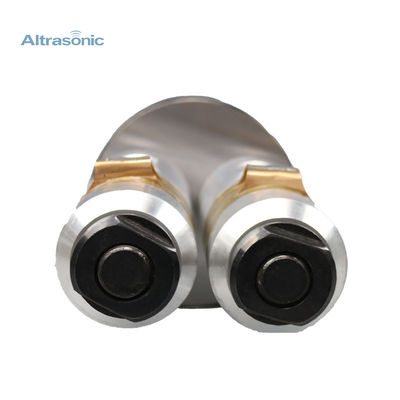

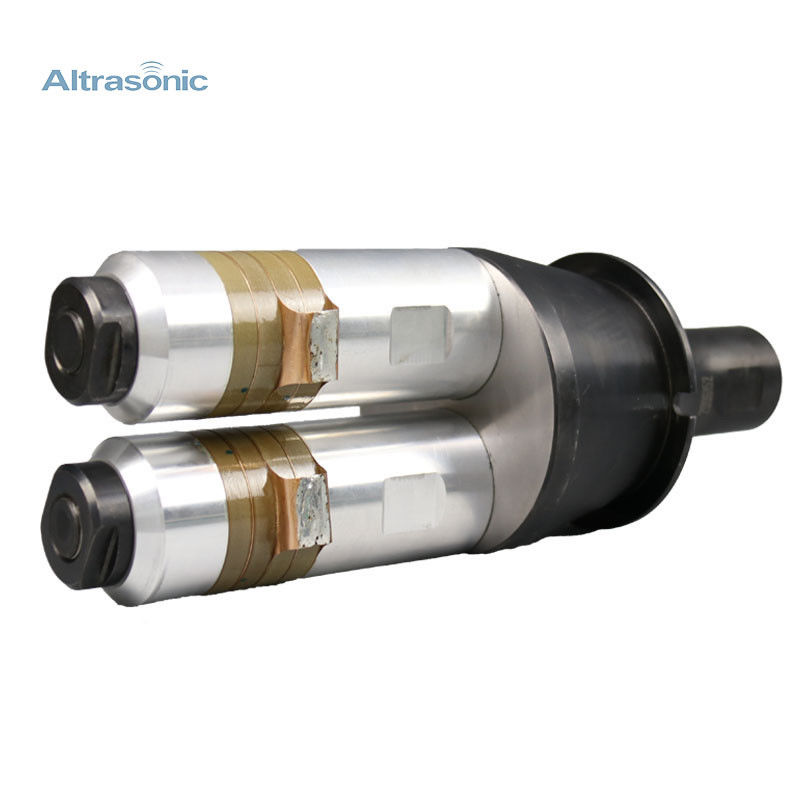

Detailed Images:

15khz 4200w Ultrasonic Double Transducer With Booster 0





Service



We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
