Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Ceramic Diameter: | 60mm |
|---|---|---|---|
| Type: | Standard Type | Frequency: | 15khz |
| Booster Color: | Gray And Black Optional | Application: | Welding Big Plastic Samples |
| Highlight: | 60mm ultrasonic welding transducer,ultrasonic welding transducer 15khz,Standard Ultrasonic Welding Transducer |
||

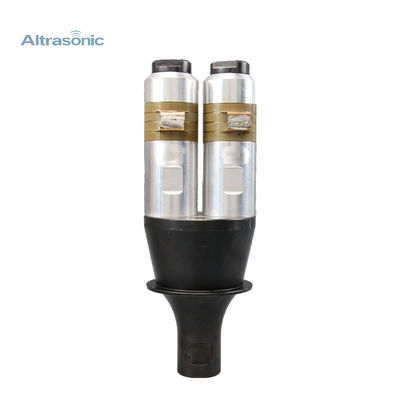

Standard 60mm Ultrasonic Welding Transducer
Description:
Altrasonic applies the highest standards of quality and safety during development and in the manufacture of ultrasonic converters. These high standards which we always strive to maintain and evolve are a key part of our success. And our customers benefit from them especially.
Specifications:
| Model | HS-6015-4Z double |
| Frequency | 15khz |
| Output power | 4200watt |
| Joint bolt | M20 1.5 |
| Ceramic disc Diameter | 60 mm |
| Quantity of Ceramic discs | 8 pcs |
| Capacitance | 8-10 nf ,10-12nf , 12.5-13.5nf |
| Amplitude | 30-40 um |
| Application | Welding |
Competitive Advantage:
1. Stable parameters
2. Easy matching with ultrasonic power supply
3. Superior raw materials
4. Accept OEM cooperation
5. One year maintaining service

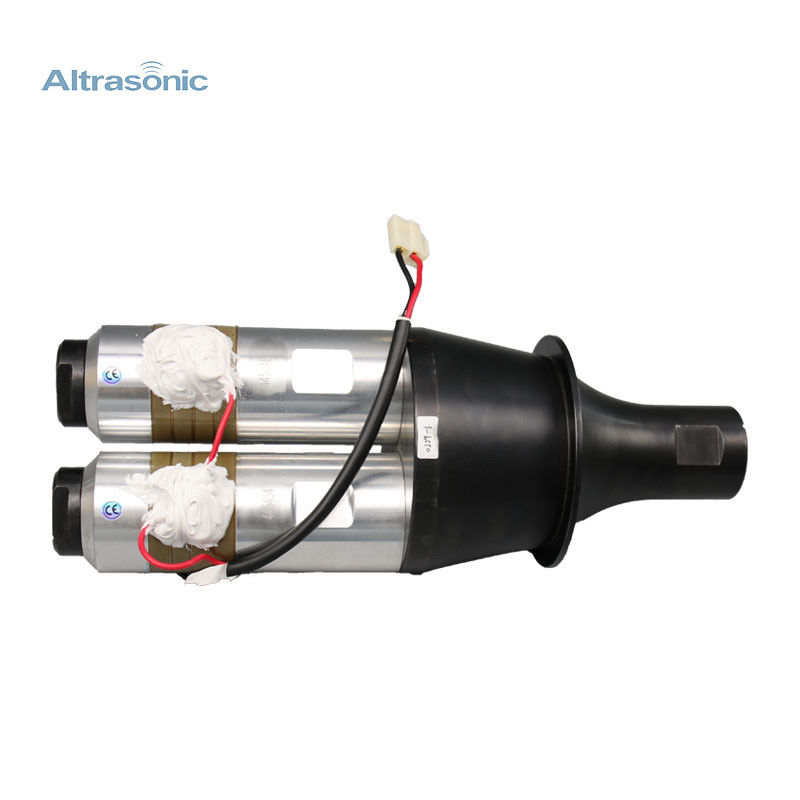

Detailed Images:
Service
We provide a wide range of high quality ultrasonic welding transducer, No matter what kind of transducer you are looking for,We can make sure that you can find one at here. it is by utilizing piezo-electric effect to convert electrical energy into mechanical energy.the bolt-on type can make sure that the transducer can produce stable ultrasonic when load changes.
