Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Capacitance: | 20nf |
| Type: | Branson | Application: | Welding |
| Highlight: | Ultrasonic Transducer 20khz,3300 Watt Ultrasonic Transducer,Ultrasonic Branson CJ20 Transducer |
||

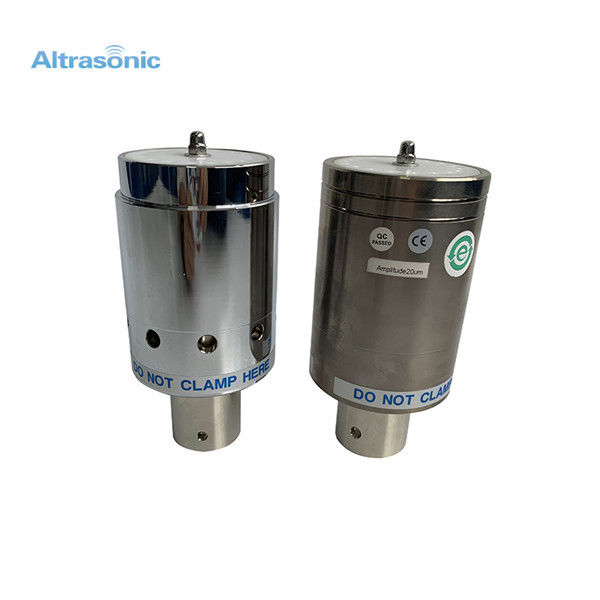

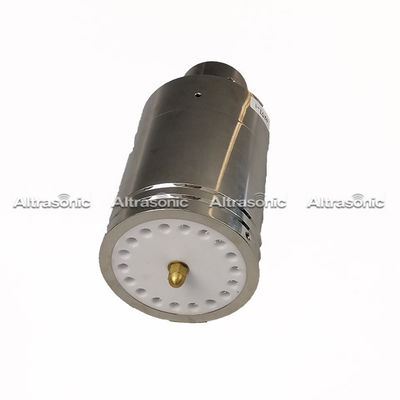

Converter Branson Cj20 3300 Watt Ultrasonic Transducer 20khz
Specifications:
|
Model |
HS-BCJ20 |
|
Frequency |
20khz |
|
Output power |
3300 watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50 mm |
|
Quantity of Ceramic discs |
6pcs |
|
Capacitance |
20nf |
|
Amplitude |
20um |
|
Application |
Welding |
Description:
It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.
Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
