Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Capacitance: | 20nf |
| Type: | Branson | Application: | Welding |
| Highlight: | 20k Ultrasonic Welding Transducer,Branson CJ20 Ultrasonic Welding Transducer,20nf Ultrasonic Welding Transducer |
||

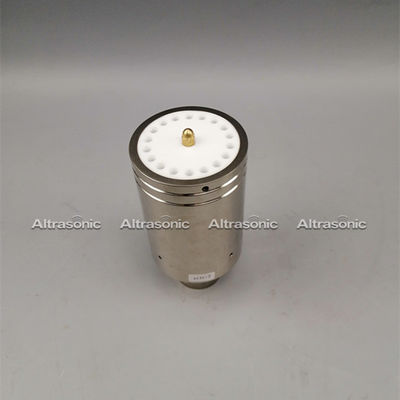

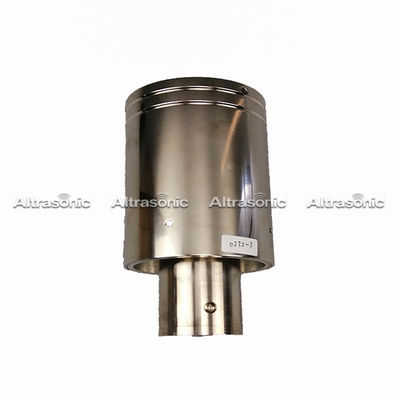

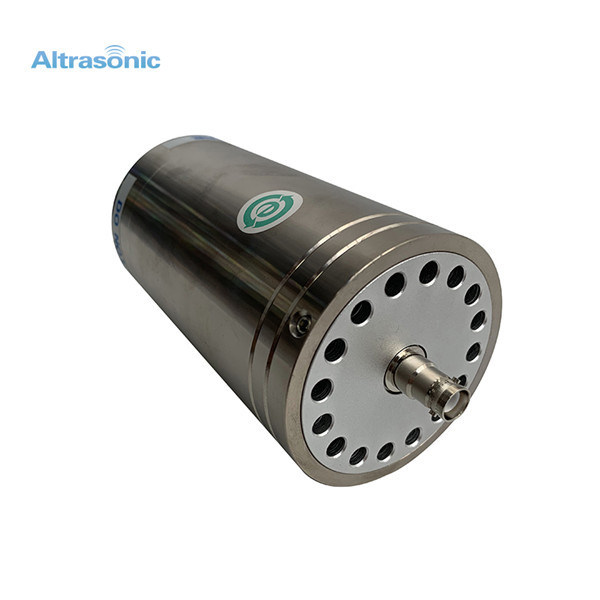

20k 20nf Replacement Branson CJ20 Ultrasonic Welding Transducer
Specifications:
|
Model |
HS-BCJ20 |
|
Frequency |
20khz |
|
Output power |
3300watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50 mm |
|
Quantity of Ceramic discs |
6pcs |
|
Capacitance |
20nf |
|
Amplitude |
20um |
|
Application |
Welding |
Description:
An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a key device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology. Due to the wide range of applications of ultrasonic technology and the emergence of new ultrasonic technologies, there are many types of ultrasonic transducers.
Applied Range:
Replacement ultrasonic converter for Branson model CJ-20 (101-135-059),
for use with all 20KHz 2000 and 2000X actuator and IW systems.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
