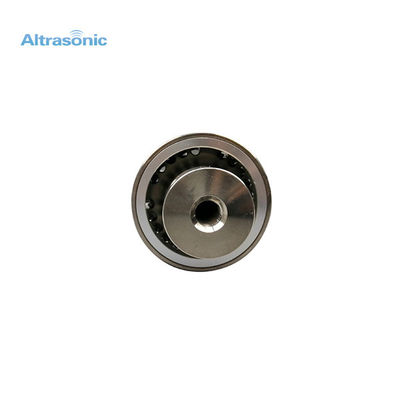

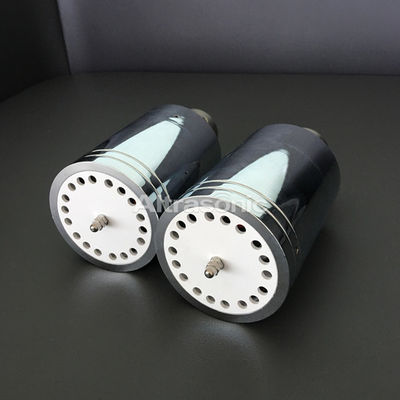

Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50mm | Capacitance: | 20nf |
| Type: | Branson | Application: | Welding |
| Certification: | CE | Warranty: | 12 Month |
| High Light: | Welding Machine 20 Khz Ultrasonic Transducer,Replacement Branson CJ20 Ultrasonic Transducer,20um 20 Khz Ultrasonic Transducer |
||
Specifications:
|
Model |
HS-BCJ20 |
|
Frequency |
20khz |
|
Output power |
3300watt |
|
Joint bolt |
1/2-20UNF |
|
Ceramic disc Diameter |
50mm |
|
Quantity of Ceramic discs |
6pcs |
|
Capacitance |
20nf |
|
Amplitude |
20um |
|
Application |
Welding |
Description:
An ultrasonic transducer is an energy conversion device that converts an alternating electrical signal into an acoustic signal or converts an acoustic signal in an external sound field into an electrical signal in an ultrasonic frequency range. It is a pivotal device in ultrasonic technology, and its performance is good or bad. It is directly related to the effect and scope of application of ultrasonic application technology.
Applications:
|
Ultrasonic welding machine |
All material with thermoplasticity can use Ultrasonic welding machine , it can welding the material more easy and stable.Such like plastic, fabric, ABS, nonwovens. |
|
Ultrasonic cutting machine |
Ultrasonic food cutting machine can make perfect edge. Ultrasonic cutting in packing area also welcomed, it can cutting and sealing at the same. |
|
Ultrasonic sewing machine |
Ultrasonic sewing can sewing the material without any cotton, and keep longer time. |
Competitive Advantages:
1. Made of Titanium
2. When assembled over, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, therefore, put it on the shelf prior to test will identify nonconforming material.
3. Testing over and over again to ensure that each transducer performance are excellent.
4. Possess good heat resistance, great quanlity can be used in a wide range of temperature with long life and high reliability.
