20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

Certification
China Hangzhou Altrasonic Technology Co., Ltd certification
Customer Reviews
The converters corresponding to your INVOICE NO. HS2015021 work very well. We would like to order more

—— Peter

I'm very happy with your good communication skills as well as follow up and good deal. I will definitely inform you my further program for further coo

—— Vinay

We tested it and it worked.  I will let you know about future purchases soon.

—— Alvin

Thank you! It is a pleasure, to work with a company that wants to make it right for the customer :) many times i deal with Chinese companies that do not care about the customer and long term business. I think I made the right decision going with you and Altrasonic !!!

—— Cameron

I'm Online Chat Now

20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask
20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask
20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask 20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask 20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask 20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

Large Image :  20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

Product Details:
Place of Origin: CHINA
Brand Name: Altrasonic
Certification: CE
Model Number: HS-DW20
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union,Paypal
Supply Ability: 500 pieces/month

20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

Description
Product Name: Ultrasonic Welding System Frequency: 20khz
Net Weight: 20kgs Horn Size: 110*20mm
Generator: Digital Usage: Ultrasonic Welding
High Light:

portable spot welding machine

,

portable spot welder

20K 2000W Ultrasonic Spot Welding Machine , Digital Ultrasonic Generator For Mask

Description:

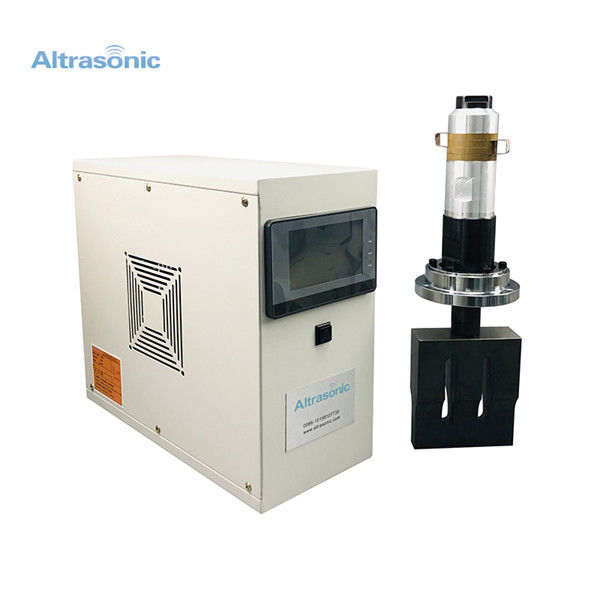

The ultrasonic system for masks is composed of ultrasonic power supply, ultrasonic transducer and tool head. Ultrasonic power supply, also known as ultrasonic generator, is a device used to generate and provide ultrasonic energy to ultrasonic transducers. The purpose is to convert our commercial power (220V or 380V, 50Hz or 60Hz) into a high-frequency alternating current signal that can be matched with the ultrasonic transducer. This is a digital power supply, with specific automatic frequency tracking function, and has a touchable display

Specifications:


Product Name20k ultrasonic welding system
Frequency20k
Power2000w
Effective working area110*20mm
Weight20kg
UsageUltrasonic welding
Generator TypeDigital Generator


Advantage:

1. Can automatically track the frequency, save trouble
2. The LCD screen can see the dynamic frequency
3. English version interface, can be more convenient to understand
4. Small size and light weight can save transportation costs

Comparison:



 Analog generatorDigital generator
CircuitAnalog circuit, discrete componentsDigital circuit, the chip control
Automatic search×
Automatic frequency tracking×
Frequency adjustment range±0.15 KHz±0.5 KHz
Power regulation×
24 hours of continuous work×
Non resonant condition×
LCD×
Add the PLC protocol×
Automatic circuit protectionBad, easy to cause the damage of componentsGood
Repair methodProfessional repair

Module replacement
