Product Details:
|
| Product Name: | Ultrasonic Welding System | Frequency: | 20khz |
|---|---|---|---|
| Net Weight: | 20kgs | Horn Size: | 110*20mm |
| Generator: | Digital | Usage: | Ultrasonic Welding |
| Working Temperature: | 5°C-50°C | Voltage: | 110V/220V |
| High Light: | portable spot welding machine,sonic welding machine |
||

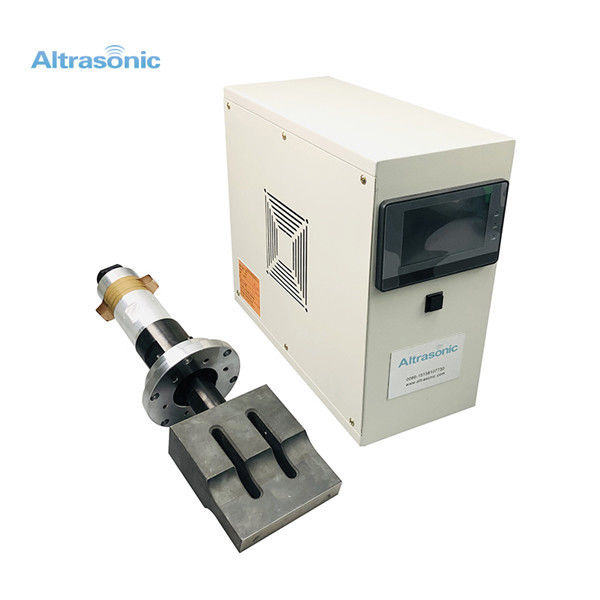

Digital Generator Ultrasonic Spot Welding Machine 20khz For Plane Face Mask
Description:
This ultrasonic generator has simple wiring, no professional knowledge, and a fool-like operation. You only need to connect the ultrasonic output line and control line. After installing the machine, it has nothing to do with the previous line. The display of various parameters is set on the man-machine interface of the generator. The delay time, welding time, holding time, ultrasonic amplitude, automatic demolding and other functions can be set through the panel. The panel can display the frequency, power, current , Output, automatic manual switching, etc.
Advantage:
1. Adopt digital power supply, touch screen with clear and large screen
2. Can realize the transformation of Chinese and English
3. Convenient and simple operation, can realize automatic frequency tracking, high frequency tracking accuracy
4. Light weight and save transportation cost
Main Features:
1. Can automatically track the frequency, save trouble
2. The LCD screen can see the dynamic frequency
3. English version interface, can be more convenient to understand
4. Small size and light weight can save transportation costs
Comparison:
| Analog generator | Digital generator | |
| Circuit | Analog circuit, discrete components | Digital circuit, the chip control |
| Automatic search | × | ● |
| Automatic frequency tracking | × | ● |
| Frequency adjustment range | ±0.15 KHz | ±0.5 KHz |
| Power regulation | × | ● |
| 24 hours of continuous work | × | ● |
| Non resonant condition | × | ● |
| LCD | × | ● |
| Add the PLC protocol | × | ● |
| Automatic circuit protection | Bad, easy to cause the damage of components | Good |
| Repair method | Professional repair |
Module replacement |
