Product Details:
|
| Frequency: | 15Khz | Model Number: | HS-6015-4Z |
|---|---|---|---|
| Power: | 2600w | Voltage: | 110V/220V |
| Single Package Size: | 45*42*26CM | Leading Time: | 7-10 Working Days |
| Max. Amplitude: | 18um | Capacitance(pf): | 8000-13500 |
| Highlight: | high frequency ultrasonic transducer,portable transducer |
||

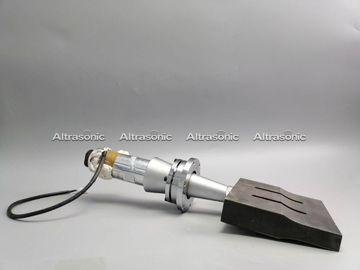

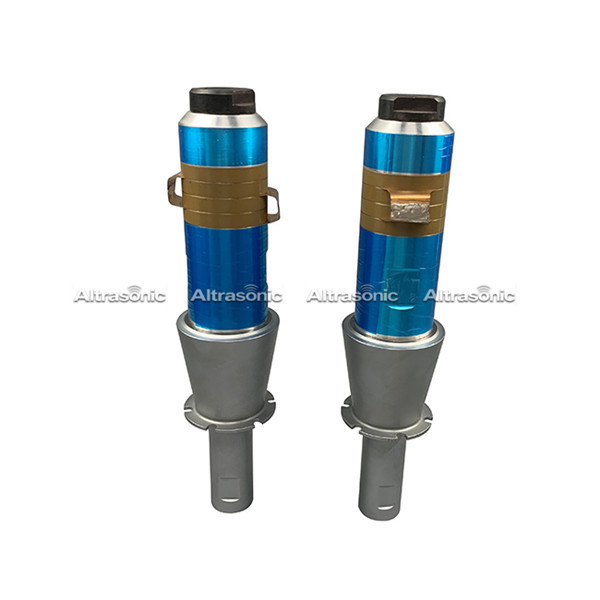

2600w Ultrasonic Welding Transducer , High Power Ultrasonic Transducer With Aluminum Booster
Description:
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Specification:
| Frequency | 15KHz |
| Power | 2600Watt |
| Voltage | 110V/220V |
| Single package size | 45*42*26CM |
| Ceramic Diameter | 60mm |
| Max. Amplitude | 18um |
Competitive Advantages:
1. High performance.
2. Easy matching with ultrasonic generator
3. Superior raw materials
4. Special items can customized.
5. Low resonance impedance and heat productivity
