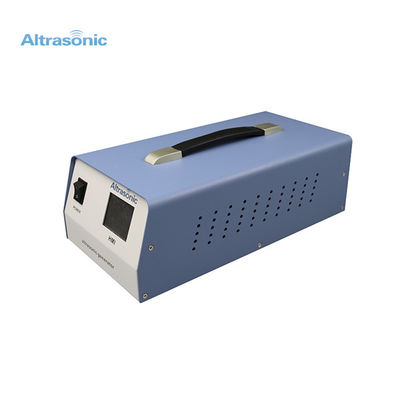

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty
30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty 30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Large Image :  30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-GD30
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: Negotiation
Packaging Details: Carton or Wooden Case
Delivery Time: Within 7 weekdays after receipt total amount
Payment Terms: T/T, Western Union
Supply Ability: 2000pcs per month

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty

Description
Model Number: HS-GD30 Frequency: 30khz
Voltage: 220V Cycle Rate: 220CPM
Warranty: 1 Year Theory: Ultrasonic Sensor
Output Power: 600w
High Light:

ultrasonic generator

,

ultrasound generator

30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty



Description:

The principle of ultrasonic welding by the ultrasonic digital generator 50/60 Hz current is converted into 15,20,30 or 40 kHz energy, even reach 70khz. The high frequency electrical energy is converted by the transducer is again converted into a mechanical movement of the same frequency, followed by the mechanical motion transmitted to the weld head through a set can change the amplitude modulator means. The welding head will be received by the vibration energy transmitted to the engaging portion of the workpiece to be welded, in the region, the vibration energy is by friction by conversion into heat, the plastic melts. Ultrasonic can not only be used to weld the hard thermoplastic fabrics and films can also be processed.



Specifications:



Model HS-G-D30
Frequency 30khz
Output power 600watt
Frequency tuning method Auto tuning
Voltage 220V 50/60HZ
Currents 10A
Environment temperature 5-50℃
Cycle Rate 200CPM
Moisture ≤85%RH



Comparison:

  Analog generator Digital generator
Circuit Analog circuit, discrete components Digital circuit, the chip control
Automatic search ×
Automatic frequency tracking ×
Frequency adjustment range ±0.15 KHz ±0.5 KHz
Power regulation ×
24 hours of continuous work ×
Non resonant condition ×
LCD ×
Add the PLC protocol ×
Automatic circuit protection Bad, easy to cause the damage of components Good
Repair method Professional repair

Module replacement





Applications:



Ultrasonic generator main function is to generate high power and high frequency alternating current, drive the ultrasonic transducer.



Detailed images:



30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty 0



Factory workshop:



30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty 1







30kHz 600w Power Ultrasonic Generator Supply For Spot Welding 1 Year Warranty 2
