Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts

Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts
Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts

Large Image :  Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-35G
Payment & Shipping Terms:
Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in carton firstly,and then reinforced with wooden case for outer packing
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month

Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts

Description
Product Name: Ultrasonic Spot Welding Machine Model Number:: HS-35G
Frequency: 35Khz Power: 700
Horn: ≤10mm Housing Diameter: 51mm
Handle Size: 100mm×45mm×32mm Weight Without Wire And Horn: 0.6kg
Type: Gun Type Application: Automotive Parts
High Light:

ultrasonic spot welding machine

,

ultrasonic plastic welding machine



35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts






Description:



Independent research and development on power hand-held ultrasonic spot welding machine with 28K, 35K,30K three different frequencies. Can be different for the following purposes;

Ultrasonic welding: ultrasonic vibration with ultrasonic welding mould, the ultrasonic welding energy conduction to the plastic surface, resulting in local temperature, so that the plastic surface melting. Under the pressure of the ultrasonic hand, so to weld plastic, beautiful, strong effect.

Ultrasonic implants: the nut screws or other metal into plastic work piece. Ultrasonic energy through the ultrasound machine will be transmitted to the metal. The high-speed vibration and heat, the pressure in the ultrasound machine to make metal objects embedded directly into the plastic inside.

Ultrasonic riveting: the nature of metal and plastic or two different plastic bonding together, can make use of ultrasonic riveting machine, so that the weldment hard brittle, beautiful, strong.

Ultrasonic welding: the use of ultrasound machine small welding head, the two pieces of plastic products into multi-point welding, or welding the first row of teeth on a direct pressure on the two plastic work piece, so as to achieve the effect of ultrasonic welding.



Specification:


  Gun Type Cylinder Type
Model HS-35G HS-28G HS-28G HS-20G HS-28C HS-28C HS-28C
Frequency 35k 28k 28k 20k 28k 28k 28k
Power 700 300&500 400&700 900 300&500 400&700 500&800
Horn ≤10mm ≤10mm ≤12mm ≤13mm ≤8mm ≤12mm ≤12mm
Housing Diameter 51mm 64mm 40mm 45mm 60mm
Handle Size 100mm×45mm×32mm —— —— ——
Weight Without Wire and Horn 0.6kg 1.3kg 1.3kg 1.5kg 0.6kg 0.6kg 1.3kg

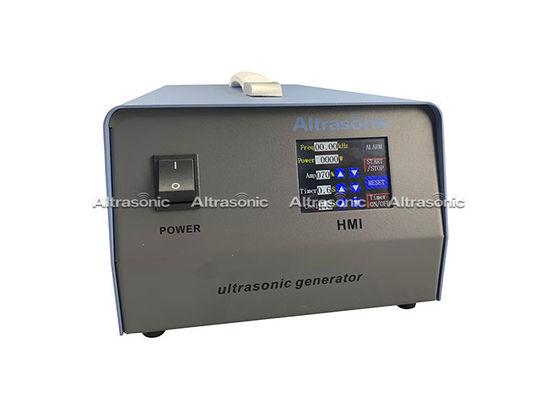

Digital generator
Analog generator


Principle:



When the ultrasonic role in the thermoplastic plastic contact surface, it will generate tens of thousands of times per second, high frequency vibration, this high-frequency vibration, ultrasonic energy through the ultrasonic wave transmitted to the mold to ultrasonic welding material surface, it will produce high-temperature materials. Plastic contact surface resulting in rapid melting, coupled with stress, it blend and coagulation, so that to achieve the purpose of ultrasonic welding.

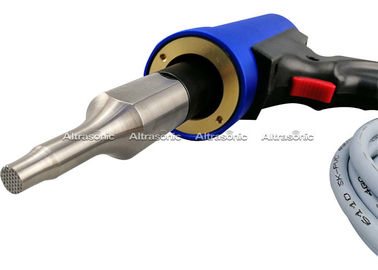

Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts 0

Main advantages:



♦ Rapid sonotrode exchange

♦ High quality, heavy duty aluminum housing

♦ High frequency and control cable to the ultrasound generator are in a strong and highly flexible braided plastic sheet

♦ Timer-controlled air cooling as an option

♦ Mobile – can be transported by handle on the generator case




WHY CHOOSE ALTRASONIC ?

1. OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
2. Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
3. Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
4. Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
5. Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

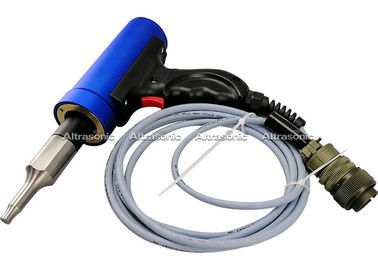

Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts 1















Gun Type 35Khz Handheld Ultrasonic Riveting Welding In Automotive Parts 2
