Product Details:
|
| Model Number:: | HSB922JA | Joint Bolt: | 1/2-20UNF |
|---|---|---|---|
| Ceramic Diameter: | 50 Mm | Qty Of Ceramic: | 6 Pcs |
| Frequency: | 20 Khz | Capacitance: | 4.5 -5.3 Nf |
| Output Power: | 20000 Pf | Max.Amplitude: | 20 Um |
| Color: | Silver | Material: | Titanium |
| High Light: | piezo ultrasonic transducer,ultrasonic transducers |
||

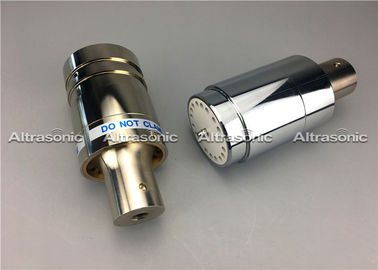

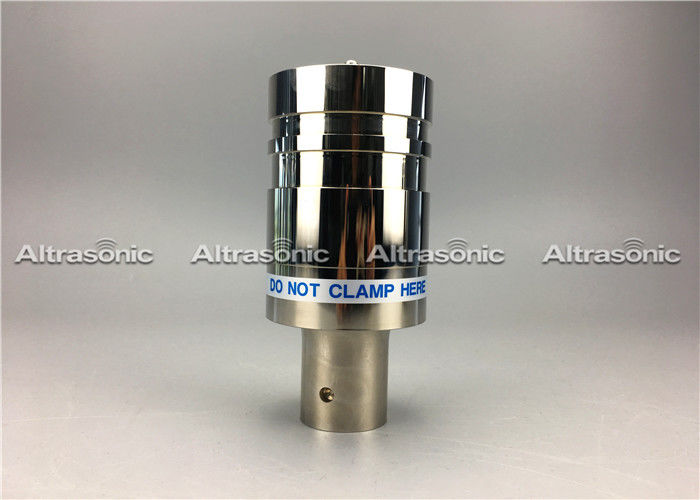

Ultrasonic Coverter Replacement Transducer Branson 922JA For Cutting Machine
Description:
The Replacement Converter for Branson CJ20 , CR20 , 922JA , 902JA , 502, Directly replaces Branson model 922JA Converter as used in 920 IW, IW+, AE, AES and AO actuator and IW machines that delivers lower cost, rugged quality and superior value.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic chips sandwiched under pressure between two metal blocks. Between each chip is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Ultrasonic Transducer introduction:
Ultrasonic transducer uses the piezoelectric effect to realize transduction between electric and sound energy. It comprises a radiation head, electrode, cap, prestressed bolt, piezoelectric chip and an insulating tube.
Specifications:
| Model | HSB922JA |
| Frequency | 20 khz |
| Output power | 2000 watt - 4000 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 20000pf |
| Amplitude | 20 um |
| Color | Silver |
| Material | Titanium |
Applied Range:
Replacement ultrasonic converter for Branson model 502, for use with 20KHz welding machine.
Warranty:
♦ We offer the same warranty as the OEM, namely, three years one-time replacement.
♦ Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).
Competitive Advantage:
1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
What we can do for you:
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
Packing sample:
