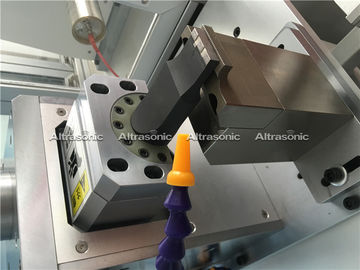

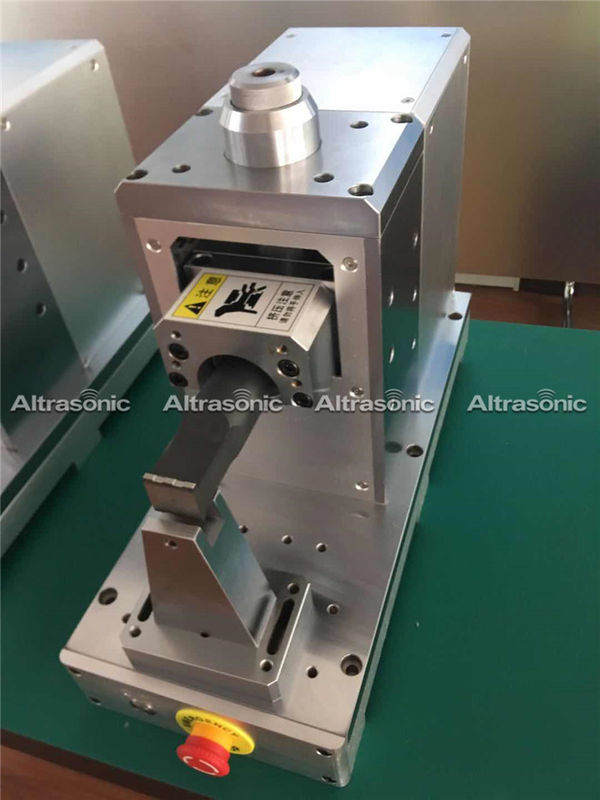

20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment

20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment
20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment 20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment 20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment

Large Image :  20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HS-G2030A
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Negotiable
Packaging Details: Wood case
Delivery Time: Within 7 working days
Payment Terms: T/T, Western Union
Supply Ability: 200 sets per month

20 KHz Ultrasonic Metal Welding Machine , Ultrasonic Spot Welder Equipment

Description
Power: 3000W Frequency: 20kHz
Generator: 20V/50Hz Cotrol: CPU Control,automatic Scanning/tracking
Components: Digital Generator, Transducer, Booster, Welding Horn Materials Of Horn: Special Steel
High Light:

ultrasonic metal welding equipment

,

ultrasonic metal welding

20kHz Ultraweld Metal Spot Welder





Description:



Ideal for welding nonferrous metals, Altrasonic ultrasonic metal welding systems meet the production demands of consumer brands and OEMs in the automotive, HVAC and electronics industries. The energy efficient-processes eliminate the need for added materials or contaminants such as flux agents, solder, solvents or crimp connectors, reducing materials costs.

With extensive materials testing and a global network of labs, our metal welding uses the latest technology to generate stable bonds that can withstand harsh conditions.



Specification:



Frequency 20 kHz
Output Power 3000 W
Voltage 380 V
Switch Handle or foot switch
Power Adjusting Step or continuous
Working Time Control 24 Hours
Weight 20-30 KG ( Determined by the size of the horn )
Generator Digital Generator





Application:

  • Polyethylene-aluminum pipe(PAP),Aluminum-Plastic laminated tube production
  • Heat exchanger tube sheet welding
  • Solar collector board
  • Aluminum corrugated board processing
  • Electric heating device, heating tube aluminum-copper welding
  • Solar fin welding



Characteristic:



      ● Adopts automatic control technology to make welding operation easy and simple

      ● The ultrasonic system is stable and reliable

      ● An ideal production equipment for welding similar or different conductive alloys and non-ferrous metals of different thicknesses

      ● Ultrasonic solar metal welding machine DC motor stepless speed regulation, welding direction can be easily set through the panel

      ● Simple mechanism and easy to install



Why choose our metal welding machine:



● Welding materials do not melt, do not destroy metal properties



● After welding, electric conduction, good thermal conductivity, low or almost zero resistance coefficient



● Low requirements for welding metal surface, oxidation or electroplating can be welded



● Short soldering time, no flux, gas, solder required



● It is easy to realize the connection and automatic control between different metals welding, no spark, environmental protection and safety
