Product Details:
|
| Frequency: | 20kHz | Output Power: | 2000 Watt |
|---|---|---|---|
| Joint Bolt: | 1/2-20 UNF | Capacitance: | 19-21 Nf |
| Amplitude: | 20 Um | Name: | 20khz Transducer |
| Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
||

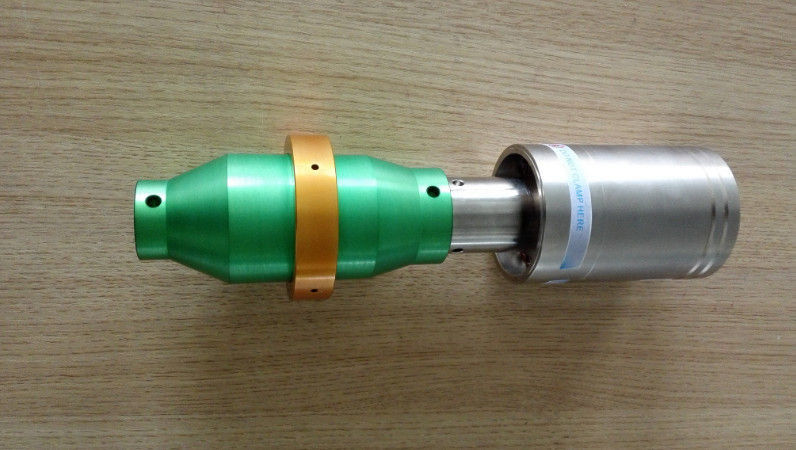

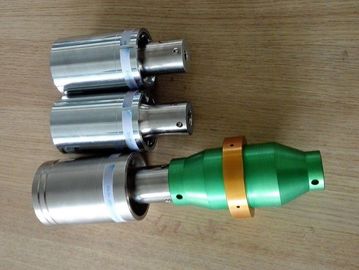

20Khz Green Booster 1:1ratio Replacement Branson Ultrasonic Transducer used for cutting machine
Specifications:
| Model | HSBCJ20 |
| Frequency | 20 khz |
| Output power | 2000 watt |
| Joint bolt | 1/2-20 UNF |
| Ceramic disc Diameter | 50 mm |
| Quantity of Ceramic discs | 6 pcs |
| Capacitance | 19-21 nf |
| Amplitude | 20 um |
| Application | welding machine |
Competitive Advantage:
1. Titanium materials
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Replacement Item Specification:
| Model |
Frequency (khz) |
Ca(PF) | Power(w) | Machine |
| Branson 402 | 19.6-20.0 | 7800-8500 | 450-900 | Branson8400 |
| Branson 502 | 19.6-20.0 | 11500-12500 | 2000 | Branson8800/5170 |
| Branson CJ20 | 19.4-19.7 | 19000-21000 | 1100-4000 | Branson2000 series |
| CB35A15A | 36.5-7.5 | 3300-4000 | 800 | Rinco-35A15A |
| CV231 | 38.3-39.0 | 3500-4500 | 900 | 40k Metal Welding |
| CV3510 | 36.2-37.0 | 3200-4000 | 800 | Rinco-CV3510 |
| Dukane 110-3122 | 19.6-20.0 | 12500-14000 | 2600 | Dukane Heavy Duty |
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
