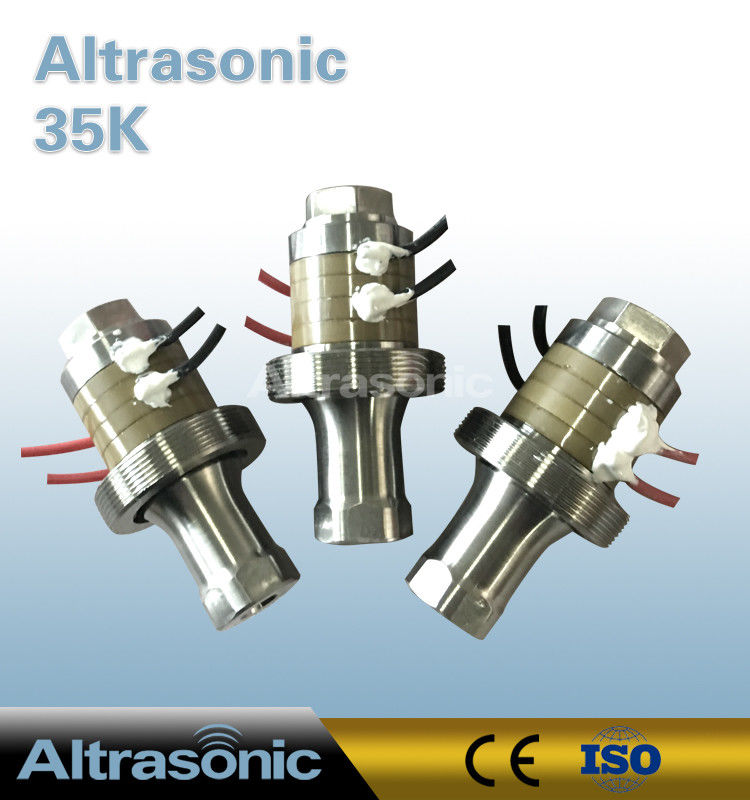

100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding

100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding
100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding 100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding 100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding 100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding

Large Image :  100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding

Product Details:
Place of Origin: China
Brand Name: Altrasonic
Model Number: HSTL2535-4D
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Packaging Details: packed in a wooden case
Delivery Time: 7days
Payment Terms: T/T, Western Union
Supply Ability: 5000 pieces/month

100w 35khz Ultrasonic Converter Replacement Of Telsonic For Plastic Welding

Description
Frequency: 35kHz Output Power: 800-1000watt
Joint Bolt: M8 Ceramic Disc Diameter: 25mm
Capacitance: 4.2-4.5nf Amplitude: 8um
High Light:

piezo ultrasonic transducer

,

ultrasonic transducers



High Quality 35khz Ultrasonic Replacement of Telsonic for Plastic Welding





Specification:



Model HSTL2535-4D
Frequency 35 khz
Output power 800-1000 watt
Joint bolt M8
Ceramic disc Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.2-4.5nf
Amplitude 8 um
Application welding machine



Description:



The 35Khz Replacement Telsonic Ultrasonic Converter with Steel Use Stainless (SUS) Protective Housing is applied to Telsonic type ultrasonic welding machine.



The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs exp and and contract, producing axial vibrations.



Applied Range:


Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,

which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,

packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.



Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.



Packing



1)Seaworthy pack: Bubble pack+stretch films+wood frame with marks of product information

2)Packing method can be also changed according to the clients' special requirement
