|Product Name:||Ultrasonic Converter||Frequency:||20 Khz|
|Ceramic Diameter:||50 Mm||Joint Bolt:||1/2-20UNF|
|Amplitude:||20 Um||Ceramic Disc:||4 Or 6 Pcs|
|Material:||Titanium, Aluminum Materials Optional||Protective Housing:||Aluminum And Stainless Steel Optional|
piezo ultrasonic transducer,

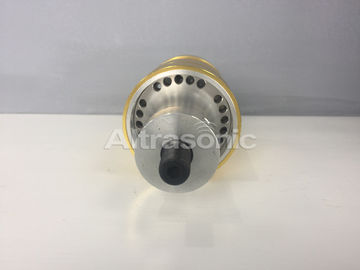

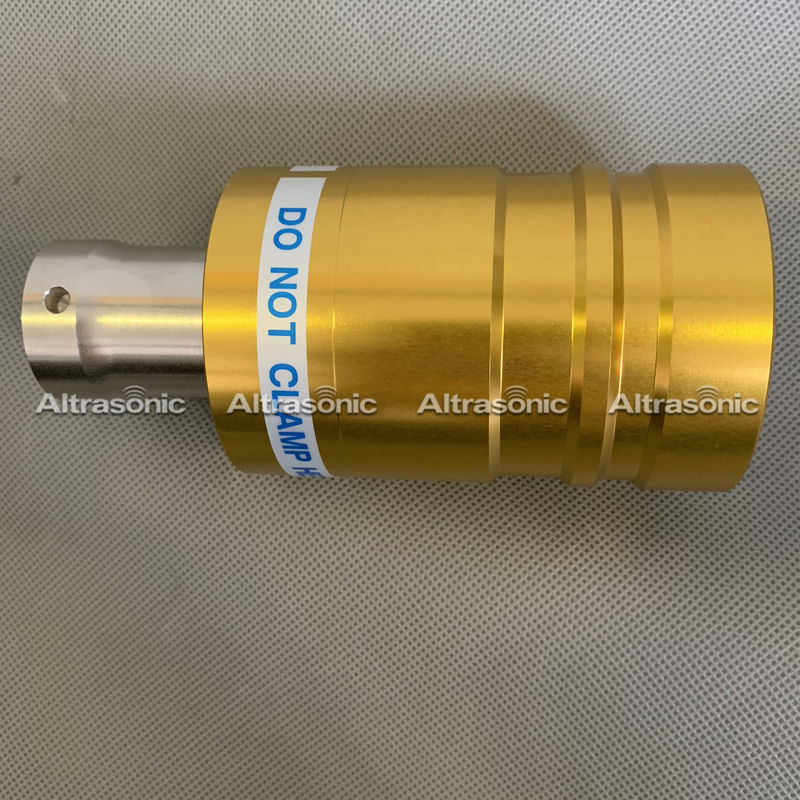

Replacement 20Khz 1500Watt Branson 803 Ultrasonic Welding Transducer 50 Mm Ceramic Diameter
|Output power||1500 watt|
|Ceramic disc Diameter||50 mm|
|Quantity of Ceramic discs||4 pcs or 6pcs|
|Capacitance||11.5 - 12.5 nf|
The Ultrasonic Converter replacement for Branson Plastic Welding Machine
Direct replacement for the Branson machine that delivers lower cost, rugged quality and superior value.
First, all of the parts are all new.
The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.
All-new made in China
Meets or exceeds all Branson specifications
Directly replaces Branson803
Made in ISO-9002 registered facility
1. We have our own factory and professional designers. We can manufacture what you need with competitive price totally as your requests;
2. Our company provides before-sales, in-sales and after-sales services with heart and soul in equipmet design and engineering construction;
3. Different country has different environment, voltage and other elements which related to production. Don't worry we have the most professional engineers to clear all the concerns and promise the regular production in your country.
What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.
We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be
replaced (one time).
2.Is ultrasonic harmful to heath?
No, ultrasonic frequencies between 20 and 35 kHz are not harmful to humans. Sometimes unpleasant whistling side noises will occur. Therefore machines in the lower frequency range often have sound insulation.
3. I want to order a certain product but i cant find it in the catalogue.
We can customize individual program depending different requirements for different customers. Also processing with supplied samples
