Product Details:
|
| Product Name: | Ultrasonic Welding Transducer | Frequency: | 60Khz |
|---|---|---|---|
| Power: | 500 Watt | Application: | Cutting Machine |
| Ceramic Disc: | 2 Pcs | Material Of Booster: | Titanium Material |
| Highlight: | piezo ultrasonic transducer,ultrasonic transducers |
||

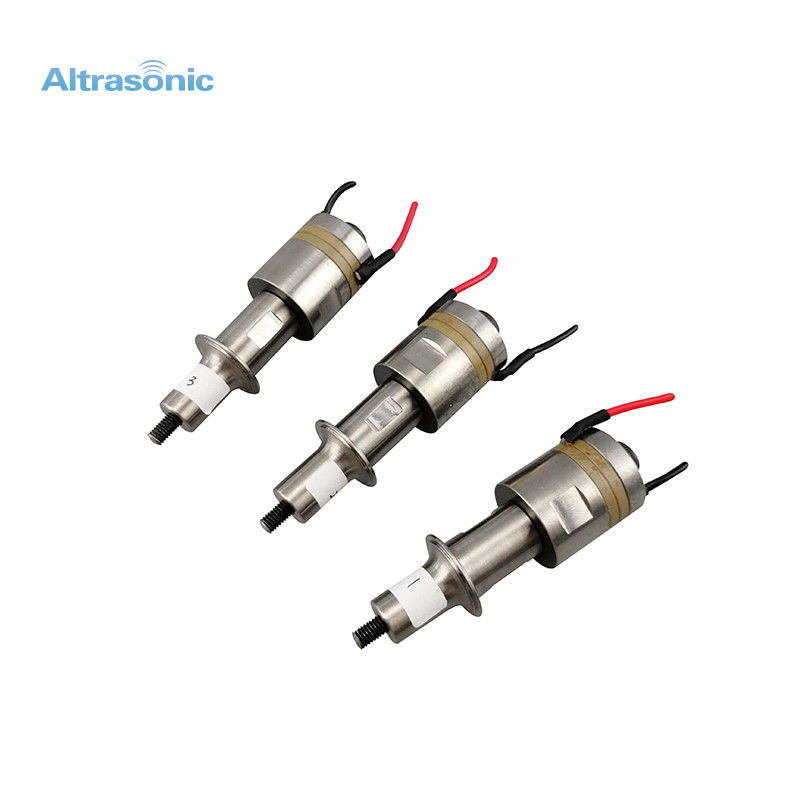

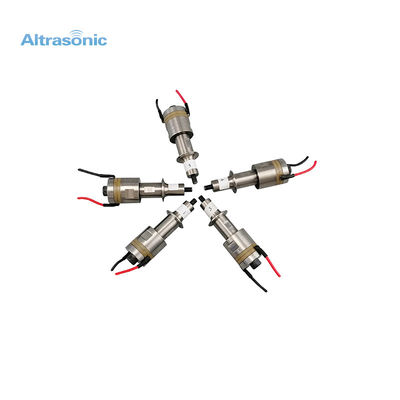

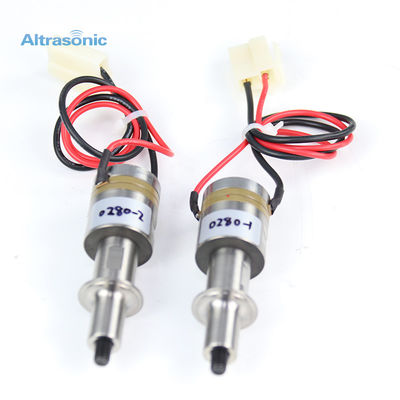

Titanium Customized 60Khz Ultrasonic Transducer for New Application in Medicine Cutting
Specifications:
| Model | HSC60 |
| Frequency | 60 khz |
| Output power | 500 watt |
| Joint bolt | 1/2-20UNF |
| Ceramic disc Diameter | 20 mm |
| Quantity of Ceramic discs | 2 pcs |
| Capacitance | 3nf |
| Amplitude | 5 um |
| Application | Cutting machine |
Description:
The 60khz Customized Ultrasonic Transducer is applied in new application of Medicine Cutting. It will be widely used in Surgical cutting and stop bledding.
The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.
Competitive Advantage:
1. Titanium, aluminum, steel materials of horn optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
Titanium Customized 60Khz Ultrasonic Transducer for New Application in Medicine Cutting
