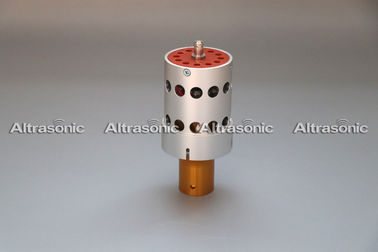

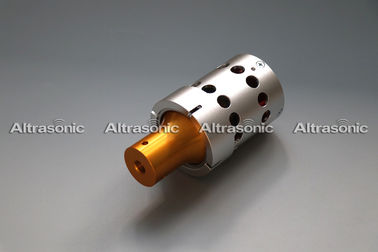

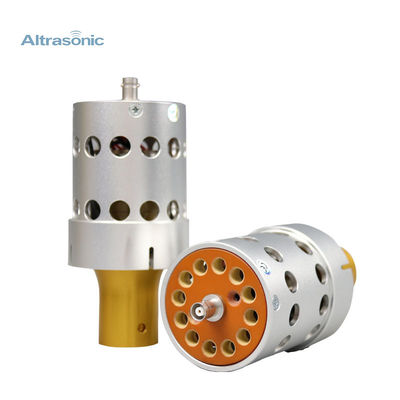

Replacement Dukane 41C30 Heavy Duty Ultrasonic Converter with BNC Type Connector

Large Image : Replacement Dukane 41C30 Heavy Duty Ultrasonic Converter with BNC Type Connector

Product Details:

Place of Origin:	China
Brand Name:	Altrasonic
Certification:	CE
Model Number:	HS-D41C30

Payment & Shipping Terms:

Minimum Order Quantity:	2 units
Price:	negotiation
Packaging Details:	Packed in carton
Delivery Time:	7 working days after received your payment
Payment Terms:	T/T, Western Union
Supply Ability:	1000 units per month

Contact Now

Replacement Dukane 41C30 Heavy Duty Ultrasonic Converter with BNC Type Connector

Description

Product Name:	Ultrasonic Converter	Frequency:	20Khz
Ceramic Diameter:	50 Mm	Capacitance:	11-17nf
Power:	2000w	Application:	Plastic Welding Machine
Ceramic Disc:	4pcs	Material:	Material: Titanium, Aluminum Materials Optional
Protective Out:	Aluminum And Stainless Steel Optional	Voltage:	220V/110V
Highlight:	piezo ultrasonic transducer , ultrasonic transducers

Replacement Dukane Heavy Duty Ultrasonic Converter Model 41C30 with BNC Type Connector

Specifications:

Model	HSD41C30
Frequency	20 khz
Output power	2000 watt
Joint bolt	1/2-20 UNF
Ceramic disc Diameter	50mm
Qty of ceramic discs	4pcs
Capacitance	11-17 nf
Amplitude	20 um
Application	Plastic welding machine

Description:

The 2000 Watt 20 KHz Ultrasonic Converter Direct replacement for the Dukane 41C30 that delivers lower cost, rugged quality and superior value.

First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and

tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

Warranty:

We offer the same warranty as the OEM, namely, three years one-time replacement.

Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Applied Range:

Replacement ultrasonic converter for Dukane 41C30, 41S30, 110-3122, 110-3168,

for use with all 20KHz 2000 and 2000X actuator and IW systems.

Competitive Advantage:

1. Titanium materials

2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.

3. One by one testing to ensure that each transducer performance are excellent.

4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you,

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.

2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.

3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Replacement Dukane 41C30 Heavy Duty Ultrasonic Converter with BNC Type Connector 0

Replacement Dukane 41C30 Heavy Duty Ultrasonic Converter with BNC Type Connector 1
