High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter

China High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter supplier
High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter supplier High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter supplier High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter supplier

Large Image :  High Power 3000 Watt Ultrasonic Welding / Sonochemistry Application Converter

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSHDW20

Payment & Shipping Terms:

Minimum Order Quantity: 1unit
Price: Negotiation
Packaging Details: Packed in carton, PE foam inside
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,00 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Welding Transducer Frequency: 20Khz
Ceramic Diameter: 50MM Capacitance: 20nf
Power: 3000 Watt Application: Welding Machine / Sonochemistry Machine
Amplitude: 20 Um Ceramic Disc: 6 Pcs
Material Of Booster: Titanium Material Protective Housing: Aluminum And Stainless Steel Optional

High Power 3000w Ultrasonic Welding or Sonochemistry Application Converter







Description:



The 20khz 3000watt Titanium Ultrasonic transducer for sonochemistry system , water treatment , homogenizing is applied to different type ultrasonic welding machine, standard welding machine, NTK type welding machine, Branson type. And can be connected with different type welding horn.

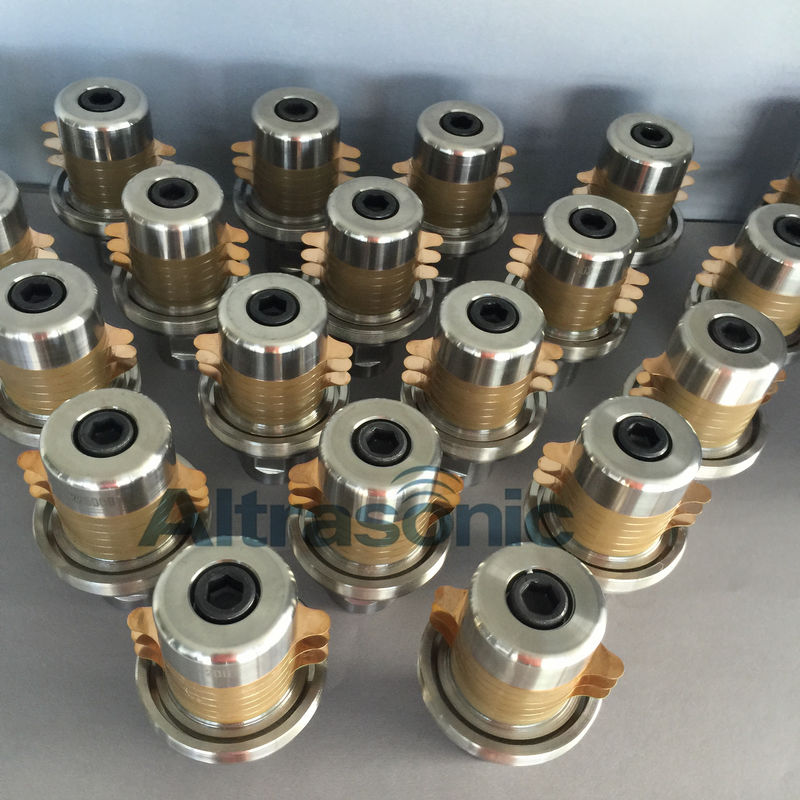

The transducer converts high-frequency electrical energy into high-frequency mechanical vibrations. And it contains several piezoelectric ceramic discs sandwiched under pressure between two metal blocks. Between each disc is a thin metal plate, which forms the electrode. When a sinusoidal electrical signal is fed to the transducer via the electrodes, the discs expand and contract, producing axial vibrations.







Specifications:



Model HSHDW20
Frequency 20 khz
Output power 3000 watt
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 6 pcs
Capacitance 20nf
Amplitude 20 um
Application welding machine







Applied Range:

Ultrasonic transducer,ultrasonic generator and ultrasonic horn constitute a whole ultrasonic system,
which can be widely used to do welding in various kinds of industries.

Applied Industries : automobile industry, electric industry, medical industry, household appliance industry, non woven fabric clothing,
packing, office supplies, toys, etc.
Applied Machines : Ultrasonic cleaner,Beauty set,welding machines,cutting machines,Medical scalpel and tartar clear.




Competitive Advantage:



1. Titanium, aluminum, steel materials of horn optional.



2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.



3. One by one testing to ensure that each transducer performance are excellent.



4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.







High Power 3000w Ultrasonic Welding or Sonochemistry Application Converter
