40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic

China 40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic supplier
40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic supplier 40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic supplier 40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic supplier

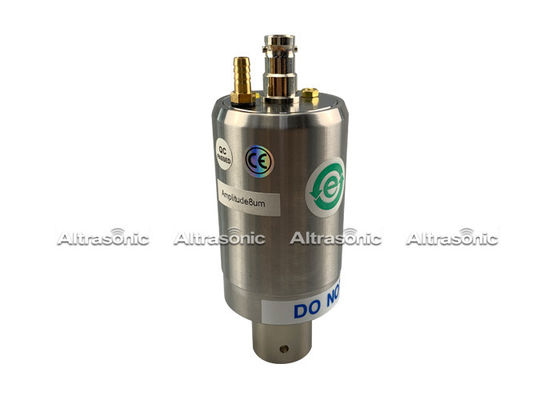

Large Image :  40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSB4TH

Payment & Shipping Terms:

Minimum Order Quantity: 1Pc
Price: Negotiation
Packaging Details: Packed in wooden case
Delivery Time: 7 workdays after receipt of the full payment.
Payment Terms: T/T, Western Union, PayPal
Supply Ability: 5000 pieces/month
Contact Now
Detailed Product Description
Model Number:: HSB4TH Joint Bolt: M8*1.25
Ceramic Diameter: 25 Mm Qty Of Ceramic: 4 Pcs
Frequency: 40 Khz Capacitance: 4.5 -5.3 Nf
Output Power: 500 Watt-800 Watt Max.Amplitude: 6 Um
Resistance: 10Ω Material: Titanium



40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic




Description:

The Replacement Converter for Branson 4TH Direct replacement for the Branson 4TH that
delivers lower cost, rugged quality and superior value.

First, all of the parts are all new. The parts are made from certified materials in tightly controlled manufacturing processes, assembled and tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance that duplicates the OEM part.

What is Ultrasonic Welding?

Ultrasonic welding is an industrial technique whereby high-frequency ultrasonic acoustic vibrations are locally applied to workpieces being held together under pressure to create a solid-state weld. It is commonly used for plastics, and especially for joining dissimilar materials. In ultrasonic welding, there are no connective bolts, nails, soldering materials, or adhesives necessary to bind the materials together.

40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic


Specifications:



Model HSB4TH
Frequency 40 khz
Output power 500 watt-800watt
Joint bolt M8*1.25
Ceramic Diameter 25 mm
Quantity of Ceramic discs 4 pcs
Capacitance 4.5 -5.3 nf
Amplitude 6 um
Resistance 10Ω
Application welding machine


Applied Range:

Replacement ultrasonic converter for Branson model 4TH, for use with 40KHz welding machine.



Warranty:

♦ We offer the same warranty as the OEM, namely, three years one-time replacement.
♦ Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).

Competitive Advantage:

1. Titanium materials and Aluminum materials optional.
2. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
3. One by one testing to ensure that each transducer performance are excellent.
4. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.

What we can do for you:

1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.

Packing sample:


40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic




40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic

40Khz 800 Watt Ultrasonic Converter Replacement Branson 4TH With 4pcs Ceramic
