20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic

China 20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic supplier
20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic supplier 20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic supplier 20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic supplier

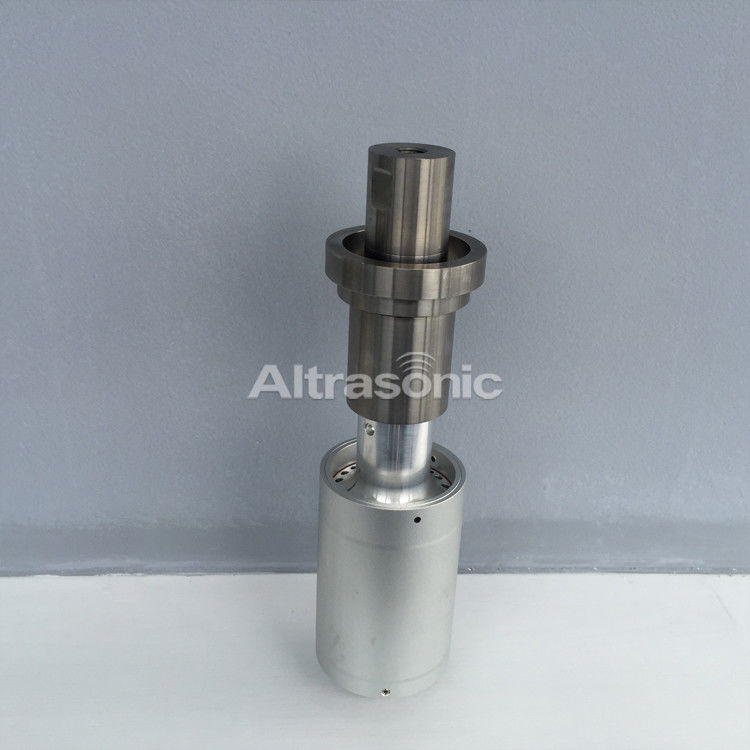

Large Image :  20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HST-20

Payment & Shipping Terms:

Minimum Order Quantity: 1 unit
Price: negotiation
Packaging Details: Packed in carton,PE foam inside
Delivery Time: 3 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 10,000 units per month
Contact Now
Detailed Product Description
Product Name: Ultrasonic Converter Frequency: 20 Khz
Ceramic Diameter: 50 Mm Joint Bolt: 1/2-20UNF
Power: 2500 Watt Application: Welding Machine
Ceramic Disc: 4 Pcs Material: Titanium, Aluminum Materials Optional



20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic Ceramic Diameter 50mm





Specifications:



Model HST-20
Frequency 20 khz
Output power 2500W
Joint bolt 1/2-20UNF
Ceramic disc Diameter 50 mm
Quantity of Ceramic discs 4 pcs
Capacitance Different item No., with different capacitance
Amplitude 20 um
Application welding machine






Description:

Direct replacement for the 20khz Tesonic machine.
You tell us the brand item No, and we can make it for you according to the brand items' No. or the original samples.
The housing can be custom - made according to your special requirements.
First, all of the parts are all new.

The parts are made from certified materials in tightly controlled manufacturing processes, assembled and
tested in a climate-controlled environment using carefully calibrated equipment, then properly aged and re-tested to ensure performance tha2t duplicates the OEM part.






Warranty:
 We offer the same warranty as the OEM, namely, three years one-time replacement.
Simply ship the broken unit back to arrive within three years of original shipment, and it will be replaced (one time).






Applied Range:

Replacement ultrasonic converter for Telsonic model, for use with 20KHz welding machine.






Competitive Advantage:


  1. In good heat resistance, can be used in a wide range of temperature with long life and high reliability.
  2. Titanium materials and Aluminum materials optional.
  3. Once assembled, the transducers are aged before testing and final assembly. The properties of piezoelectric materials can change with time and pressure, so a bit of time on the shelf prior to testing will identify nonconforming material.
  4. One by one testing to ensure that each transducer performance are excellent.







What we can do for you,
1. OEM - special custom-made the ultrasonic transducers or parts for you, and save cost for you.
2. Supply Replacement converter - Including NTK, Branson CJ20, CR20, 922JA..., Dukane 110-3122, Rinco brand and so on.
3. For some special items, you can provide us with samples, then we can give you a competitive price and custom-made it for you.




20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic Ceramic Diameter 50mm


20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic

20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic

20Khz 2500w Ultrasonic Welding Converter Replacement for Telsonic
