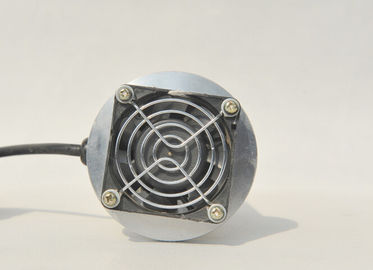

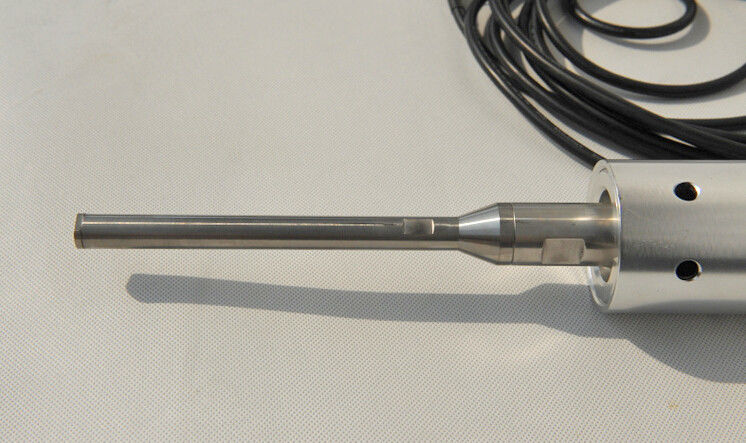

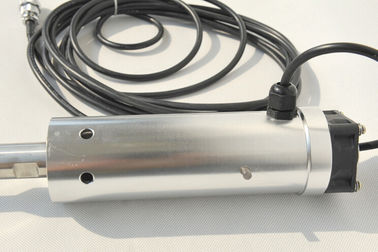

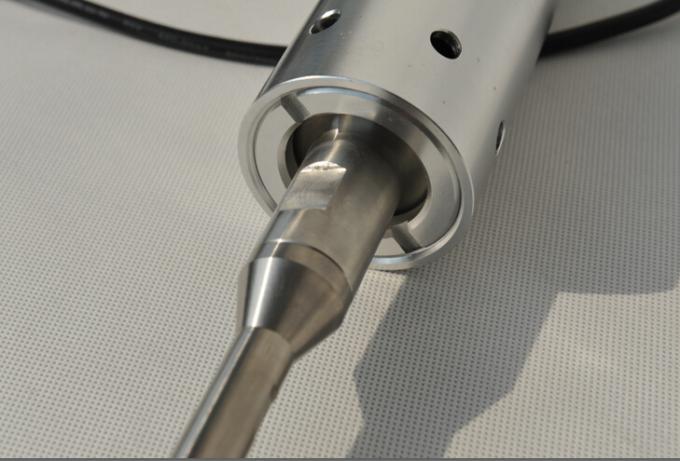

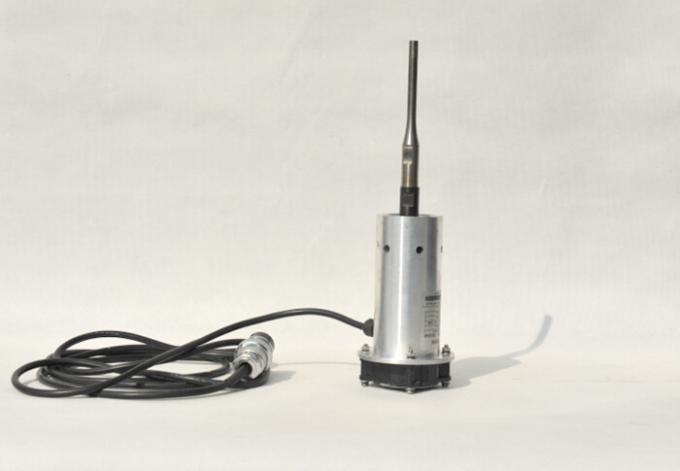

Minimal Power Digital Ultrasonic Homogenizer Machine With High Amplitude Probe
|Frequency||40±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz|
|Power||100 W||1000 W||1500 W||2000 W||3000 W|
|Voltage||220±10% V||220±10% V||220±10% V||220±10% V||220±10% V|
|Temperature||150 ℃||150 ℃||300 ℃||300 ℃||300 ℃|
|Pressure||Normal||Normal||35 MPa||35 MPa||35 MPa|
|Intensity of sound||＞10 W/cm²||＞10 W/cm²||＞30 W/cm²||＞40 W/cm²||＞60 W/cm²|
|Max Capacity||＞ 100M L/Min||＞ 5 L/Min||＞ 15 L/Min||＞ 20 L/Min||＞ 30 L/Min|
|Material Of Tip Head||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy|
The principle of ultrasonic homogenizer is make the ultrasound radiate in liquid and powder mixing solution media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.
All of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.
WHY CHOOSE ALTRASONIC ?
Minimal-power Digital ultrasonic Cell Disruptor require 150 watts of power or less
