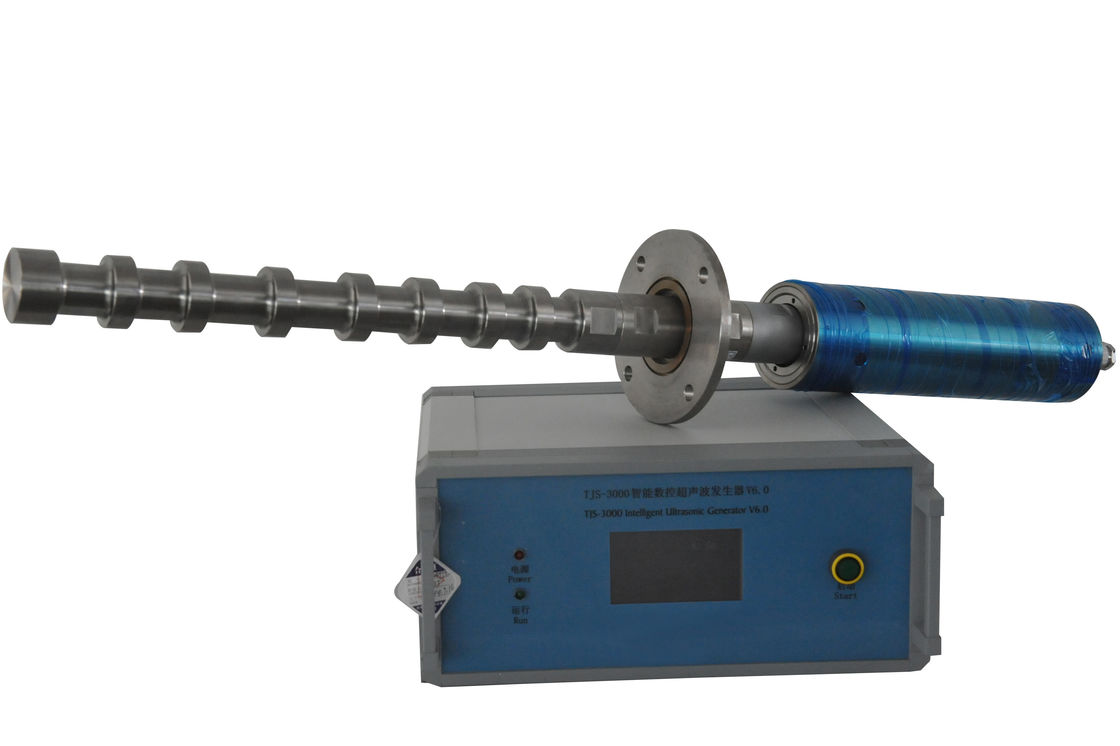

Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification

China Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification supplier
Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification supplier Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification supplier

Large Image :  Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification

Product Details:

Place of Origin: China
Brand Name: Altrasonic
Certification: CE
Model Number: HSS59B-ZB

Payment & Shipping Terms:

Minimum Order Quantity: 1set
Price: negotiation
Packaging Details: Packed in carton, and PE form inside
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Western Union
Supply Ability: 100pcs per month
Contact Now
Detailed Product Description
Frequency: 20Khz Power: 2000W
Material: Titanuim Max Capacity: > 10 L/Min

Efficient Energy Conversion Ultrasonic Industrial Homogenizer For Water-Oil Emulsification



Minimum Order Quantity:

1pcs

Price:

negotiation

Payment Terms:

T/T

Supply Ability:

100pcs per month

Delivery Time:

10 working days after received your payment

Packaging Details:

Packed in carton, and PE form inside



Specifications:


Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy



Description:



Ultrasound creates acoustic cavitation, which produces violently imploding vacuum bubbles, causing shock waves, microjets and strong shear forces as well as extreme local temperatures (~5,000 K) and pressures (~1,000 atm). These extreme conditions result in exceptionally efficient mixing, yielding nanoemulsions with very small droplet sizes and enormous contact areas between all components.



Applications:



Reaction Acceleration – cavitation accelerates chemical and physical reactions.

Fine Particle

Dispersion – e.g. nanoparticle processing

Disruption and Cell Lysing – will break open biological tissues and

cells to extract enzymes and DNA, prepare vaccines.

This technology provides a method for

ultrasonically lysing cells and spores in a liquid flowing continuously or intermittently through a cylindrical reactor.

Homogenization – making uniform mixtures of liquids or liquid suspensions.

Emulsification – processing foods, pharmaceuticals, and cosmetics.

Dissolution – dissolving solids in solvents.

Degassing – removing gases from solutions without heat or vacuum.





Competitive Advantage:



Flexible system designs for any length of pipe.

May be adapted to most any diameter pipe or tube.

Will drive most any pipe thickness (e.g.1mm to 30mm) at high power.

Flow through design allows easy adaptation to lab and industrial systems.

Long wave guides options allow for very high temperature applications.

Wide ranging power options offer:

Simplified one-piece tube design without seams or joints allows easy internal cleaning and sterilization.
