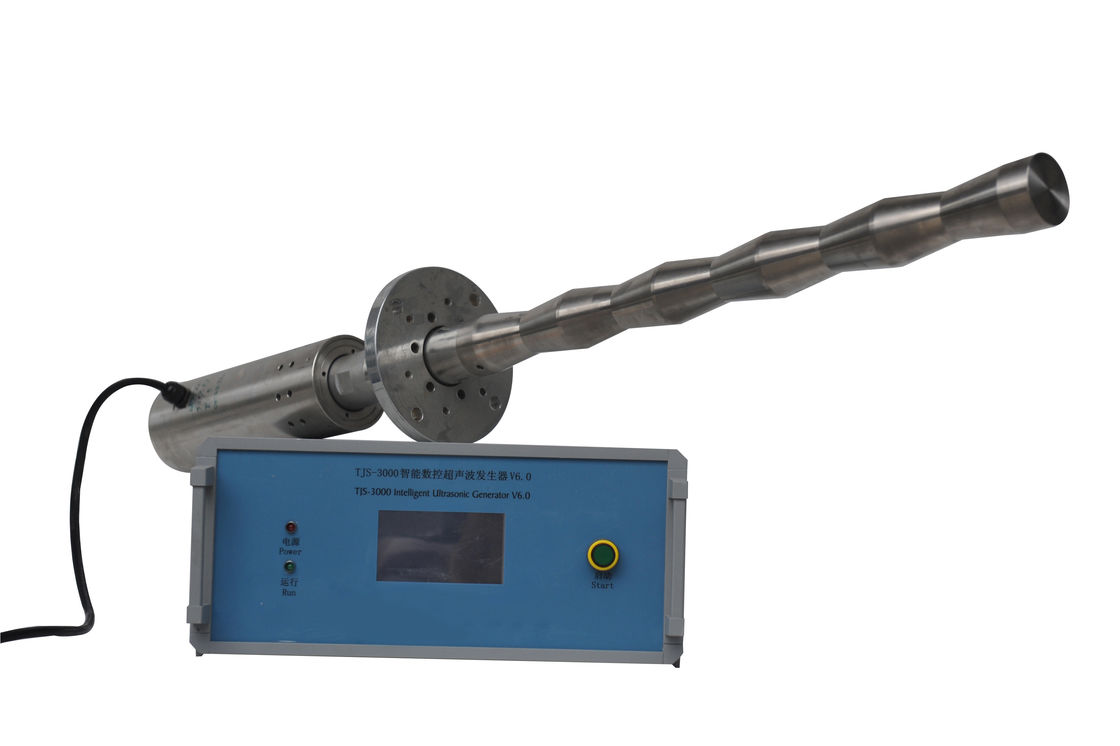

Titanium Alloy Ultrasonic Dispersion Equipment With High Power Probe Sonicator

Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator
Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator

Large Image :  Titanium Alloy Ultrasonic Dispersion Equipment With High Power Probe Sonicator

Product Details:
Place of Origin: CHINA
Brand Name: Altraasonic
Certification: CE
Model Number: HSS59B-ZB
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: negotiation
Packaging Details: Packed in carton, and PE form inside
Delivery Time: 10 working days after received your payment
Payment Terms: T/T
Supply Ability: 1000pcs per month

Titanium Alloy Ultrasonic Dispersion Equipment With High Power Probe Sonicator

Description
Name: Ultrasonic Homogenizer Frequency: 20Khz
Power: 2000W Weight: 35Kg
High Light:

ultrasonic homogeniser

,

ultrasonic biodiesel reactor

Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator


Specifications:



Model HSS11B-EB HSS17B-ZB HSS57B-ZB HSS59B-ZB HSS61B-ZB
Frequency 40±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz 20±1 KHz
Power 100 W 1000 W 1500 W 2000 W 3000 W
Voltage 220±10% V 220±10% V 220±10% V 220±10% V 220±10% V
Temperature 150 ℃ 150 ℃ 300 ℃ 300 ℃ 300 ℃
Pressure Normal Normal 35 MPa 35 MPa 35 MPa
Intensity of sound >10 W/cm² >10 W/cm² >30 W/cm² >40 W/cm² >60 W/cm²
Max Capacity > 100M L/Min > 5 L/Min > 15 L/Min > 20 L/Min > 30 L/Min
Material Of Tip Head Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy Titanium Alloy




Ultrasonic:

The principle of ultrasonic dispersion is make the ultrasound radiate in liquid media, the liquid promptly flow produce a large number of tiny air bubbles, these tiny bubbles formed in the
negative pressure zone along the longitudinal ultrasonic radiation and grow continuously, and quickly closed in the positive pressure area.this effect is known as "cavitation" phenomenon, in this process,
closed bubbles can form thousands of instantaneous high pressure.

Automatic Tuning


All of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.





Competitive Advantage:



  • Custom System Designs and Consulting,
  • Active Ultrasonics provides consulting services and custom reactor designs,
  • High amplitude probe,
  • Unrestricted flow-through cylindrical systems,
  • High Power Probe Sonicator.


Applications:



  • Disruption of cells, bacteria and tissues,
    Adjustment of ribosome,
    Cutting of actinomycetes and fungal threads,
    Acceleration of a chemical reaction,
    Extraction of special components by disruption of tissue fragments,
    Emulsification and dispersion in samples (a mixture of liquids such as water-oil, water-silver, etc.), and
    Insatiable Pursuit of High Grade Design for More Efficient Energy Conversion can achieve a high energy conversion efficiency which generates almost no heat. A unique circuit and a structure adopted in the design to minimize the power loss can control heat generation of the converter which may disturb the oscillation effect of ultrasonic waves and have adverse influence on the sample.

WHY CHOOSE ALTRASONIC ?





  • OVERSEA SERVICE TEAM. We now have agents in India, Austrilia, Hongkong, Singapore, Taiwan, Malaysia, Germany, and other country still being discussing.
  • Innovation. Altrasonic R&D and marketing staffs to constantly explore new applications in the field of ultrasound, and the importance of team spirit of cooperation.
  • Half the price, double the value. Every product reach you have been test in our company three times, and with 72 hours continous working, to confirm it is well before you get it. Also we always learn from foreign company, to upgrade our products.
  • Good components. Ceramic mainly imported from German, and using the superior quality aluminum, titanium raw materials.
  • Individual Customize. We can customize products according to your requirements, Also supply OEM service. Customize ultrasonic solution for different applications.

Titanium Alloy Ultrasonic Dispersion Equipment With High Power Probe Sonicator



Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator 0

Titanium Alloy Ultrasonic Dispersion Equipment  With High Power Probe Sonicator 1
