13Kg High Power Ultrasonic Laboratory Homogenizer For Particles Uniform Dispersion
|Frequency||40±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz||20±1 KHz|
|Power||100 W||1000 W||1500 W||2000 W||3000 W|
|Voltage||220±10% V||220±10% V||220±10% V||220±10% V||220±10% V|
|Temperature||150 ℃||150 ℃||300 ℃||300 ℃||300 ℃|
|Pressure||Normal||Normal||35 MPa||35 MPa||35 MPa|
|Intensity of sound||＞10 W/cm²||＞10 W/cm²||＞30 W/cm²||＞40 W/cm²||＞60 W/cm²|
|Max Capacity||＞ 100M L/Min||＞ 5 L/Min||＞ 15 L/Min||＞ 20 L/Min||＞ 30 L/Min|
|Material Of Tip Head||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy||Titanium Alloy|
Sometimes referred to as Sonicator, Cell Disrupter or Cell Disruptor, Sonifier, Probe Sonicator, Ultrasonic Liquid Processor, and Sonic Dismembrator.
How it Works

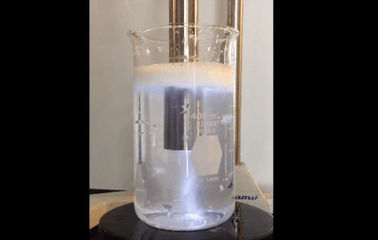

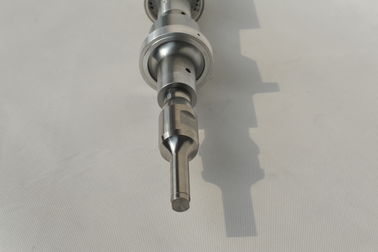

The ultrasonic power supply transforms line voltage to high frequency 20 kHz electrical energy. This electrical energy is transmitted to the probe where it is converted to mechanical energy. The vibrations from the probe are coupled to and intensified by the titanium tip. The probe vibrates in a longitudinal direction and transmits this motion to the titanium tip immersed in the solution. Cavitation results, in which microscopic vapor bubbles are formed momentarily and implode, causing powerful infinitesimal shock waves to radiate throughout the solution in proximity to the radiating face of the tip.
|Prepare Tissue||Prepare Emulsions||Immiscible Liquids|
|Accelerate Enzymatic Reactions||Accelerate Chemical Reactions||Stimulate Bacterial Activity|
|Disperse Solids||De-gas Liquids||Deaglomerate Powders|
|Dissolve Powders||Dissolve Tablets||Emulsify Cosmetics|
|Extract DNA / RNA||Extract Proteins||Emulsify Liposomes
All the of our Ultrasonic Homogenizers models employ a propriety feedback system, insuring that the generator is always working at it maximum efficiency regardless of the application. There is no need for constant adjustment by the operator. The percentage of ultrasonic power emitted is indicated by the output LED meter, enabling accurate reproducible results.
Custom System Designs and Consulting.
Active Ultrasonics provides consulting services and custom reactor designs.
High amplitude probe flow cells.
Unrestricted flow-through cylindrical systems.
High Power Probe Sonicator.
Custom sizes available for laboratory and high volume industrial applications.
Contact Person: Hogo Lv
